Servo brake has a 55mm input bore which attaches to a Japanese-made servo motor and a 1-5/8 inch output shaft attached to a US-made gearbox.
Metric to Imperial Hybrid Brake
Archives: Products
Products

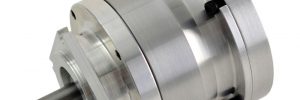

Low Backlash Servo Brake
Locking collars connect both sides of this servo brake designed with low backlash for connection to an Allen Bradley servo motor and a Apex planetary gearbox.

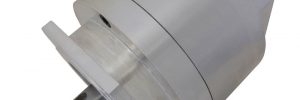

Keyless Input – Keyed Output Brake
The input bore with locking collar attaches to a Yaskawa SGMGV-IE 15kw servo motor and the output shaft with keyseat connects to a Lenze gearbox.
Air Motor to IEC Hybrid Brake
This servo brake connects to a Dyna-Torque 7 air motor with a ½ inch shaft and an IEC 100-B5 flanged gear reducer.

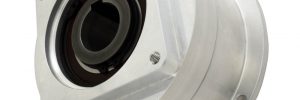

Vertical Mount Metric Brake
Designed with a positive release feature, this servo brake can be mounted in a vertical orientation. It has metric dimensions and a ¼-19 BSPT air inlet.

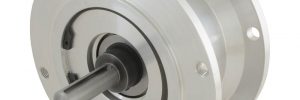

213TC to 182TC NEMA Hybrid Brake
Servo brake connects two different NEMA frame sized components; a 213TC frame servo motor and 182TC frame gear box.

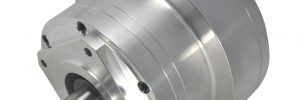

Alpha Fanuc Input Servo Brake
This servo brake has a 35mm bore and geometry on the input side to connect to a Alpha Fanuc motor. The output side has a 38mm shaft which is connected to a ball screw.

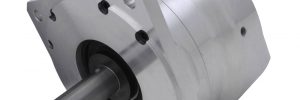

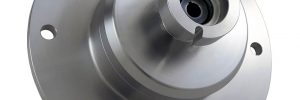

Yaskawa Motor to IEC Hybrid Brake
The input side of this brake connects to a Yaskawa SGMVV-2BD3B6N servo motor and the output side bolts directly to a IEC 160-B5 flange gearbox.

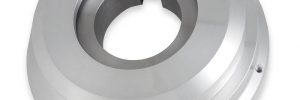

Brake with Extra Large Bore
This air engaged unit applies 374 inch pounds of brake torque to a 2.875 inch shaft while taking up only 2.55 inches of axial space on the machine.

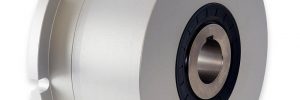

Brake For Meat Processing Conveyor
Used in a pork processing plant, this brake used on a carcass transport conveyor is constructed for durability in a washdown environment.
