Clutch-Brake With Undersized Sprockets

The application for this clutch-brake required double-single 60A19 sprockets where the standard Mach III model had a minimum of 60A20.

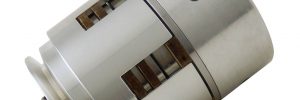

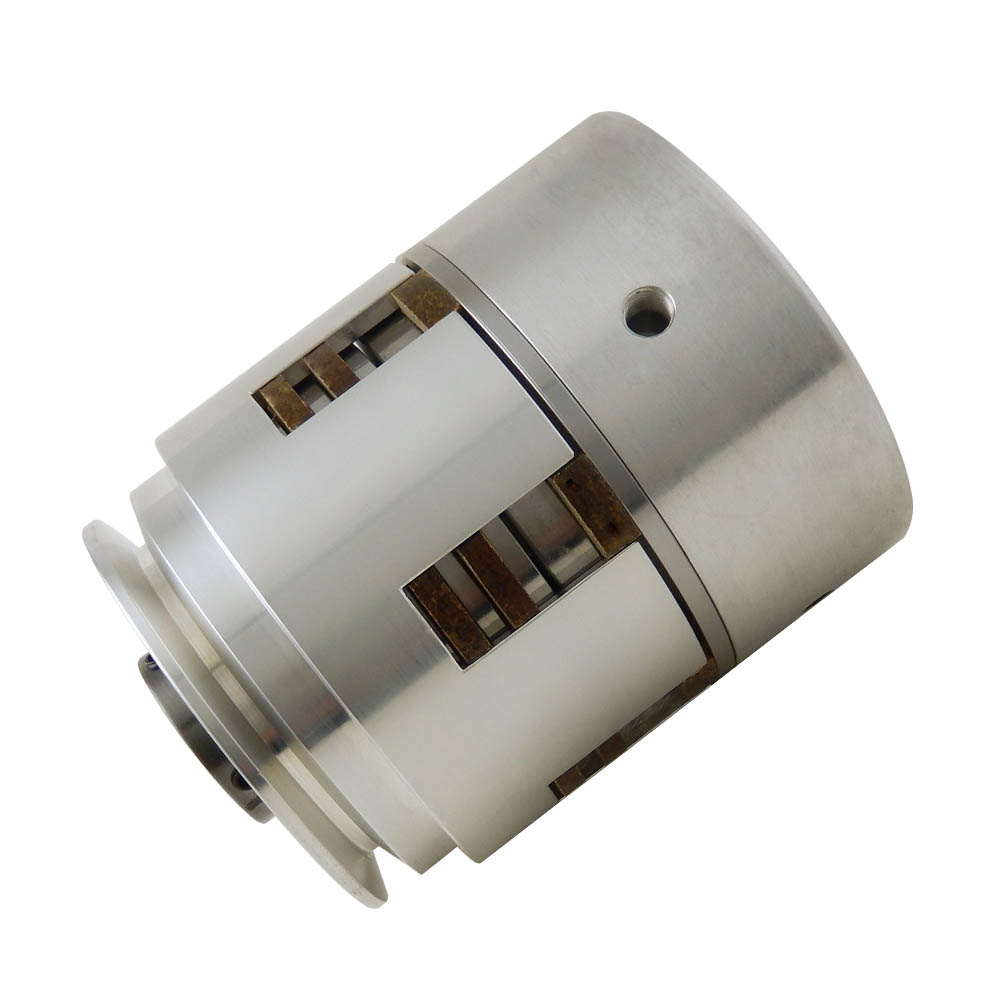

Clutch-Brake With Pulley Output

The input to this clutch-brake is the 16mm shaft on which it is mounted. When engaged, it drive the pulley and in the absence of air, the pulley is stopped.

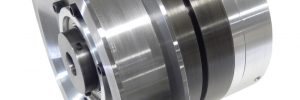

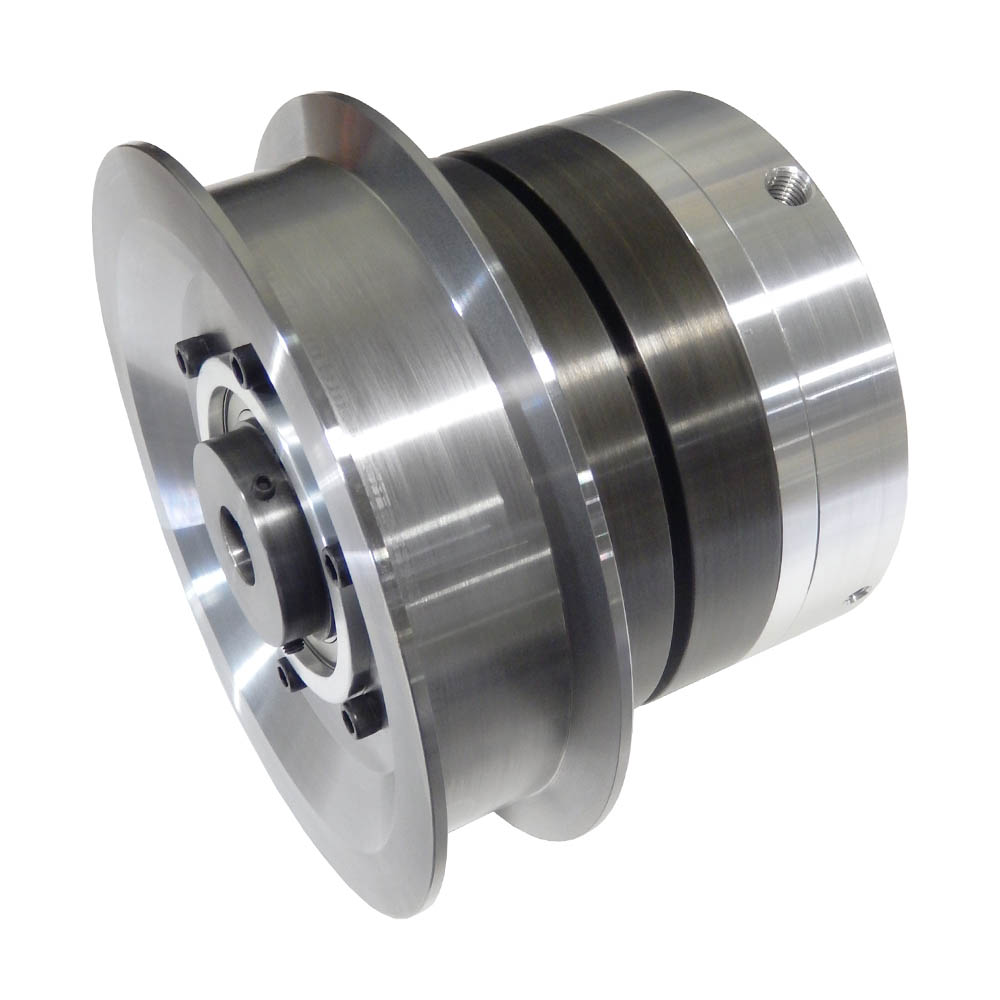

Clutch-Brake With Pulley Input

The input to this clutch-brake is a 13 inch diameter V groove pulley. When engaged with air, it drives the shaft and in the absence of air, it stops the shaft.

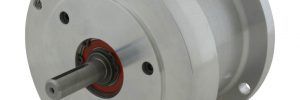

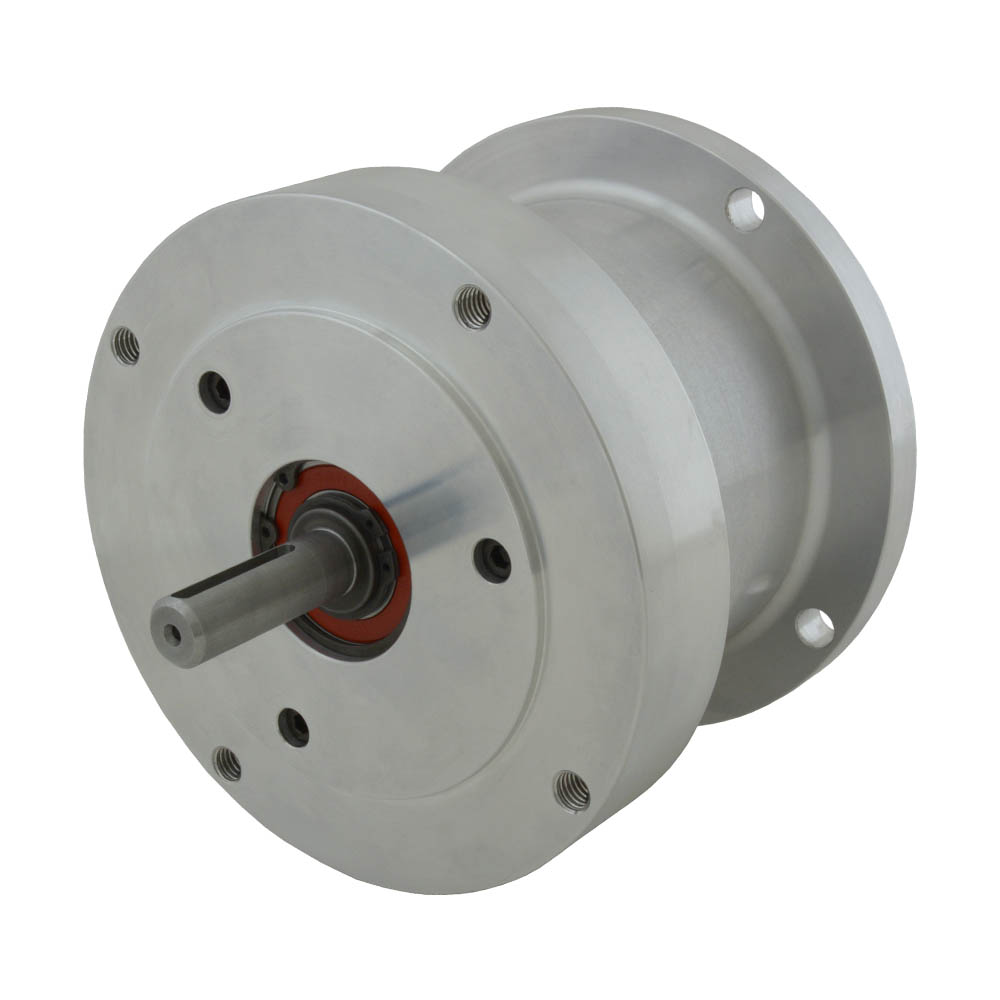

Equal Clutch and Brake Torque

This NEMA 56 frame unit houses both an air engaged clutch and air engaged brake, each of which has a torque capacity of 111 pound inches.

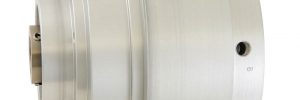

Food Safe Clutch-Brake

Developed for use in food packaging, this clutch-brake is made of anodized aluminum, electroless nickel plated and stainless steel components.

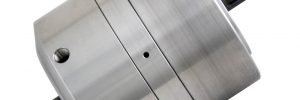

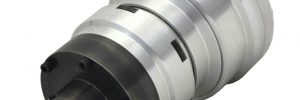

Clutch-Brake Coupling

This combination unit with both an air engaged clutch and air engaged brake couples a 1.125 inch shaft to a 1.25 inch shaft.

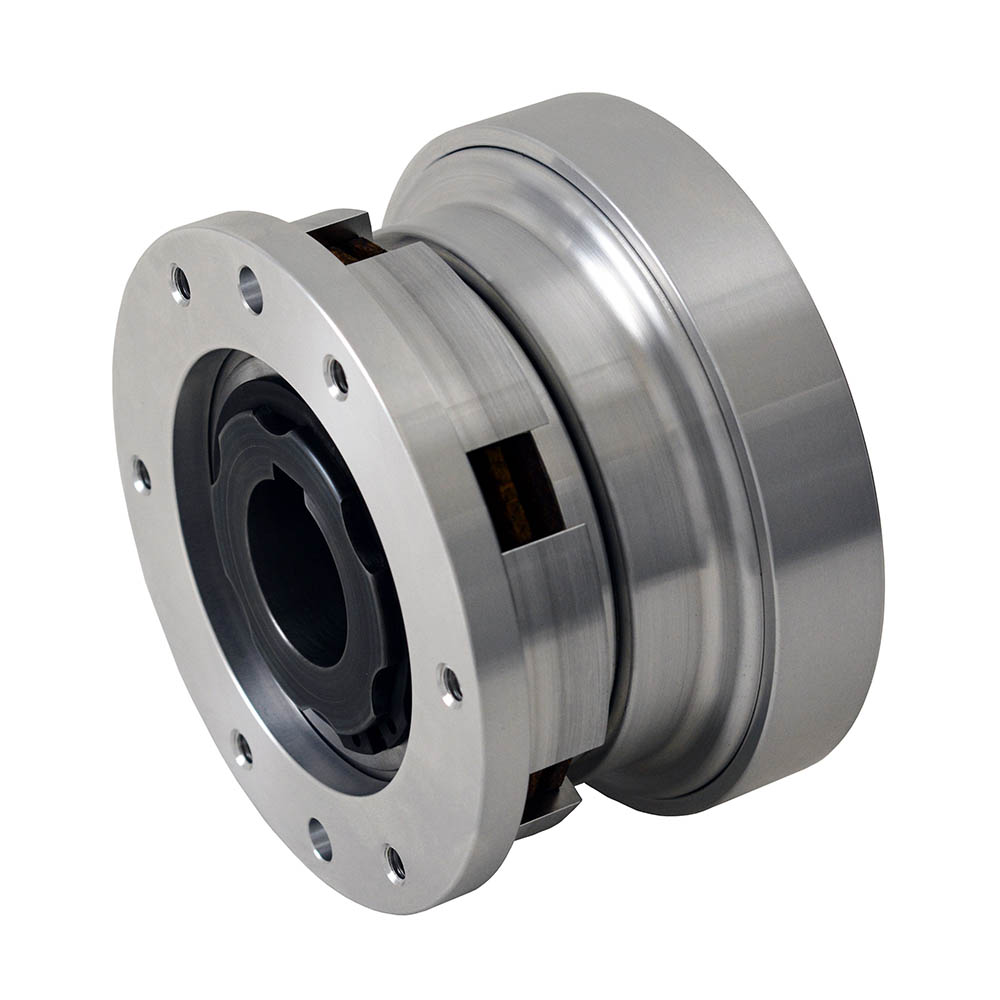

Clutch with Custom Adapter

Designed for a retrofit upgrade, this air engaged clutch mechanism has a custom adapter which attaches to a flywheel on a four-slide machine.

Ultra-Compact Clutch

Developed to fit within a narrow space on a riffle-drilled shaft in a coil winding machine, this air engaged clutch is just 2.14 inches long.

Low Pressure Conveyor Clutch

This quadruple disc clutch requires only 30 psi to produce the required torque so it requires little to no maintenance and lasts for decades.

Sealed Clutch with Spider Coupling

Air engaged, sealed clutch with all-aluminum housing is used in a wash-down environment. Output mates to a Lovejoy L150 spider coupling.

Integral 6 Groove Pulley

A six groove, 5V-belt pulley is machined into the housing of this air engaged clutch with a torque rating of 7,400 pound inches.

Air Cooled Clutch

For an application where the clutch must slip but also must be enclosed, this clutch has a special dual port rotary seal to allow two air connections.

High Torque Clutch with Female Pilot

With a 3.0 Inch Bore and 42,000 pound inches of torque, this air engaged clutch is built for heavy duty use. The pilot is tapped to accept eight 3/8-16 bolts.

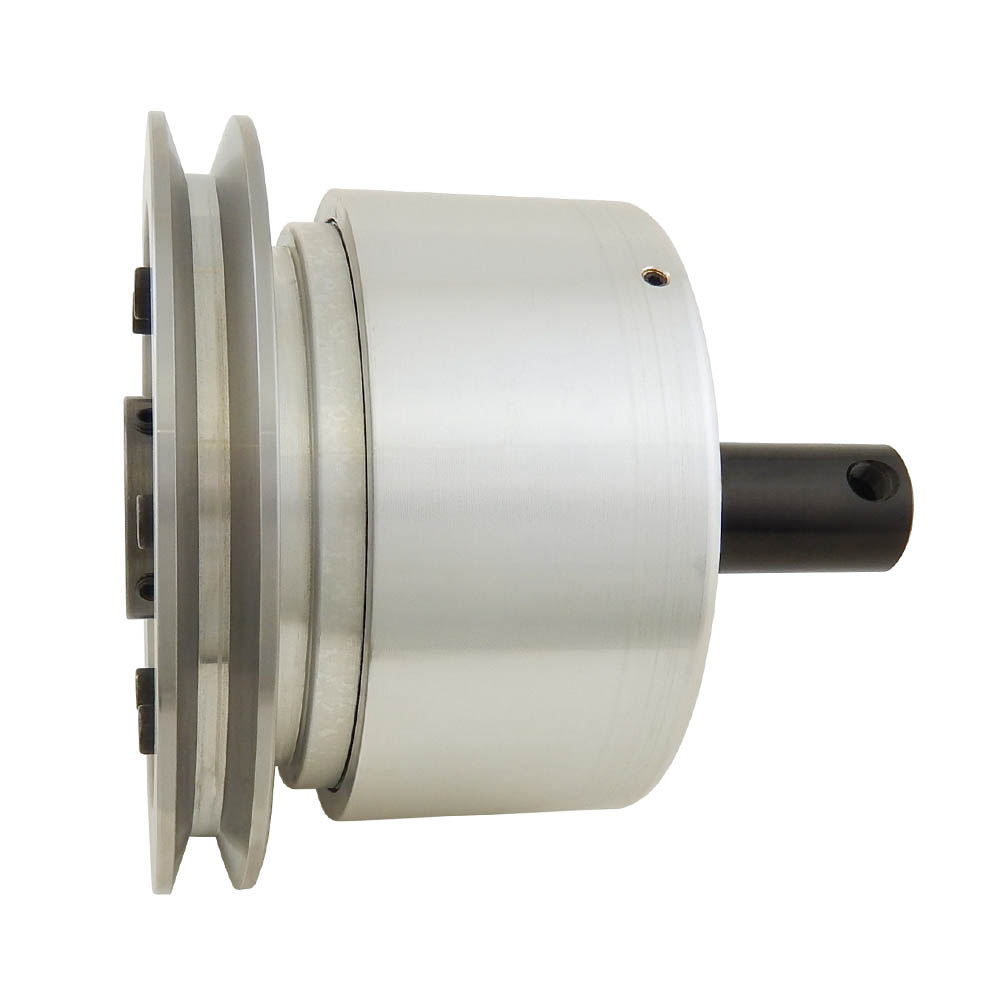

Covered Clutch with Integral Pulley

The aluminum housing completely incases this air engaged clutch and an integral 38 degree A groove pulley makes installation a snap.

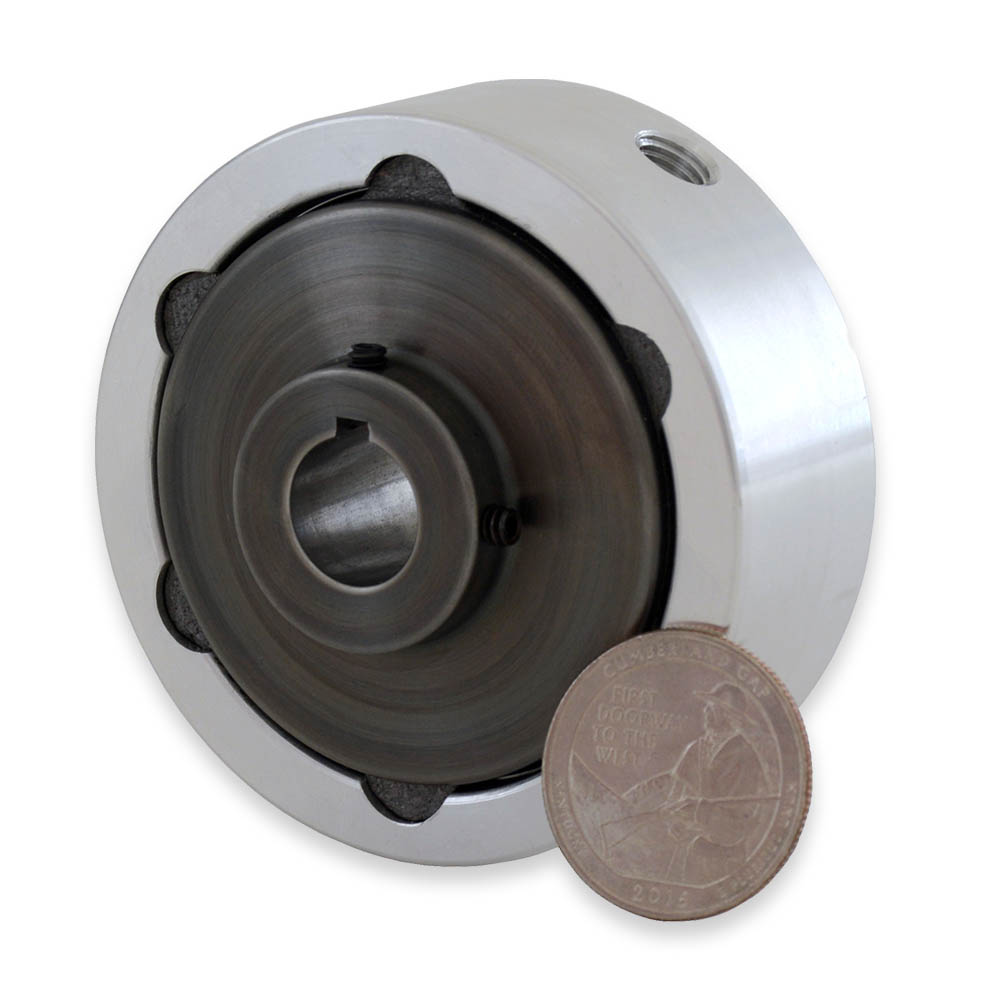

Micro Tension Control Brake

Air applied brake provides ultra-light tension on a half-inch shaft and is less than an inch and a half long.

Diameter Restricted Holding Brake

With four brake discs, this spring applied brake holds a 1.75 inch shaft with 4,400 pound inches of torque and fits within a 9 inch diameter.

Brake With Manual Release Option

Spring applied brake holds a 19 mm shaft stationary until it is disengaged with compressed air or, in case of a power outage, manually disengaged with the release lever.

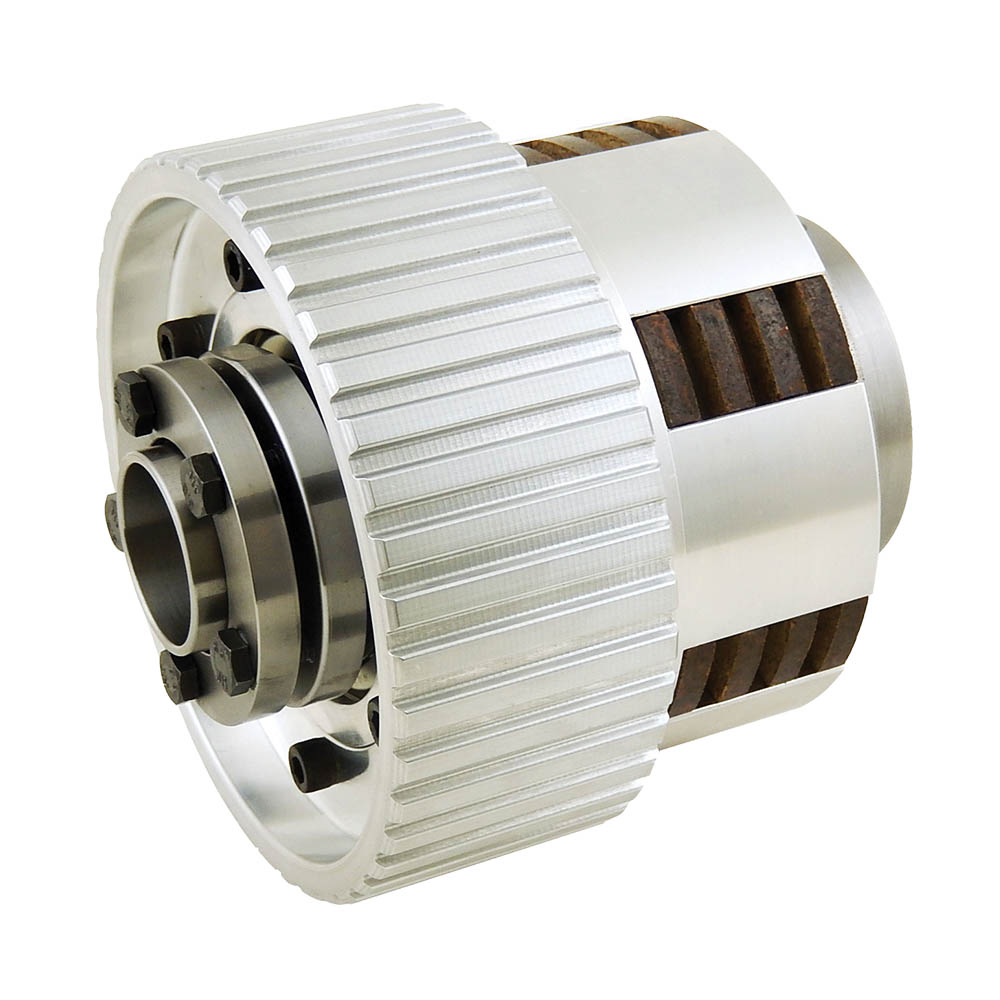

Diameter Restricted Torque Limiter

Required to have a torque capacity of nearly 4,000 pound inches within a diameter of less than 5.5 inches, this unit delivers with a multi-disc design.

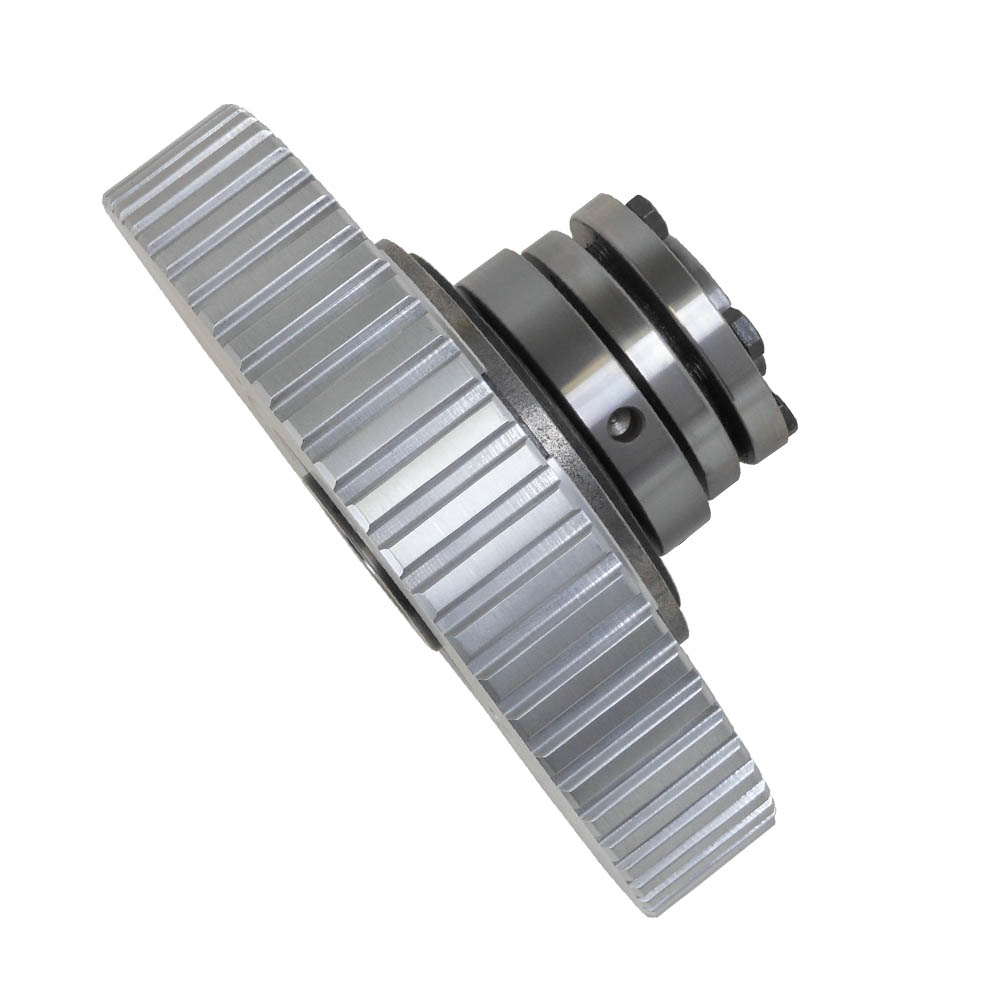

Browning Torque Limiter Replacement

This torque limiter locks onto the shaft with a shrink disc and includes an integral 60L100 pulley. It replaced a Browning TGC 60 on a retrofit project.

Overload Protection For Sprag Clutch

Designed to attach directly to a size 600 Renold sprag clutch, this unit provides a torque capacity of 6,500 pound inches and is less than 4.5 inches long.

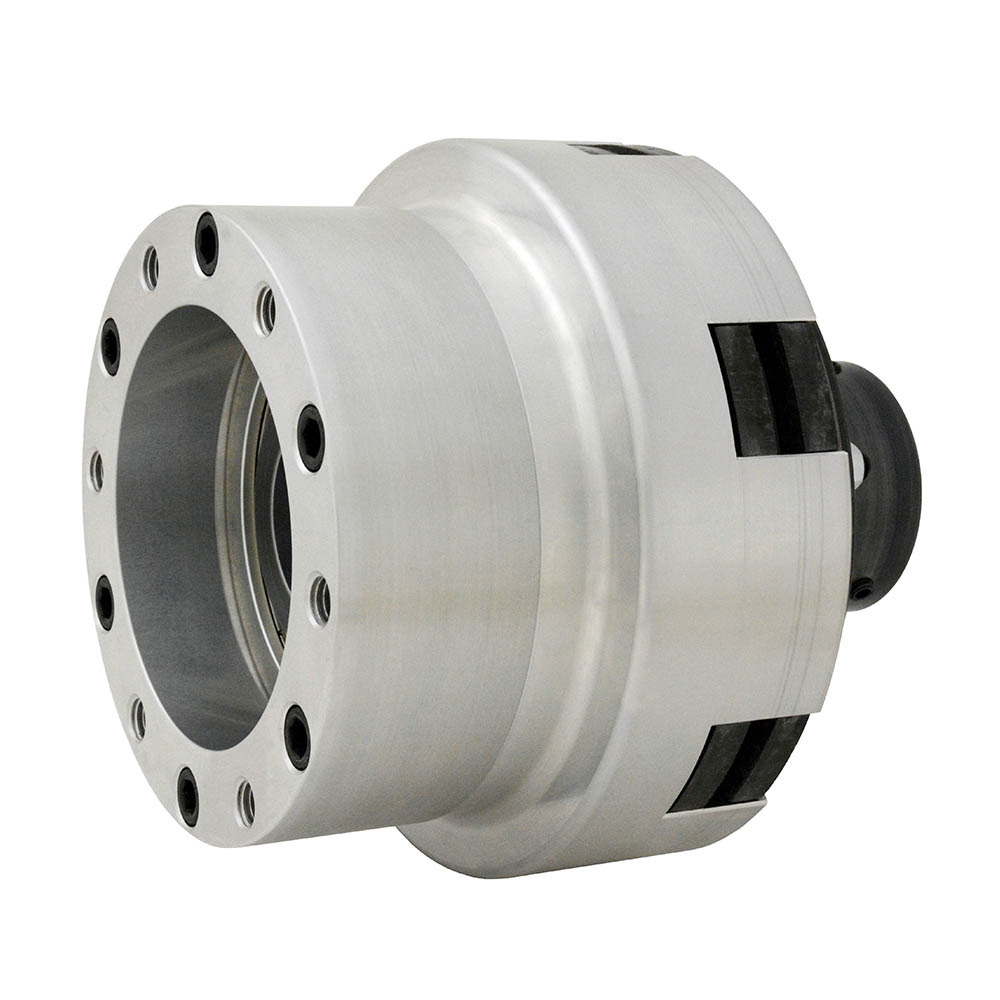

Torque Limiter With Female Pilot

Capable of a slip torque setting of 6,140 pound inches, this torque limiter bolts to a flange that is used for testing valves.

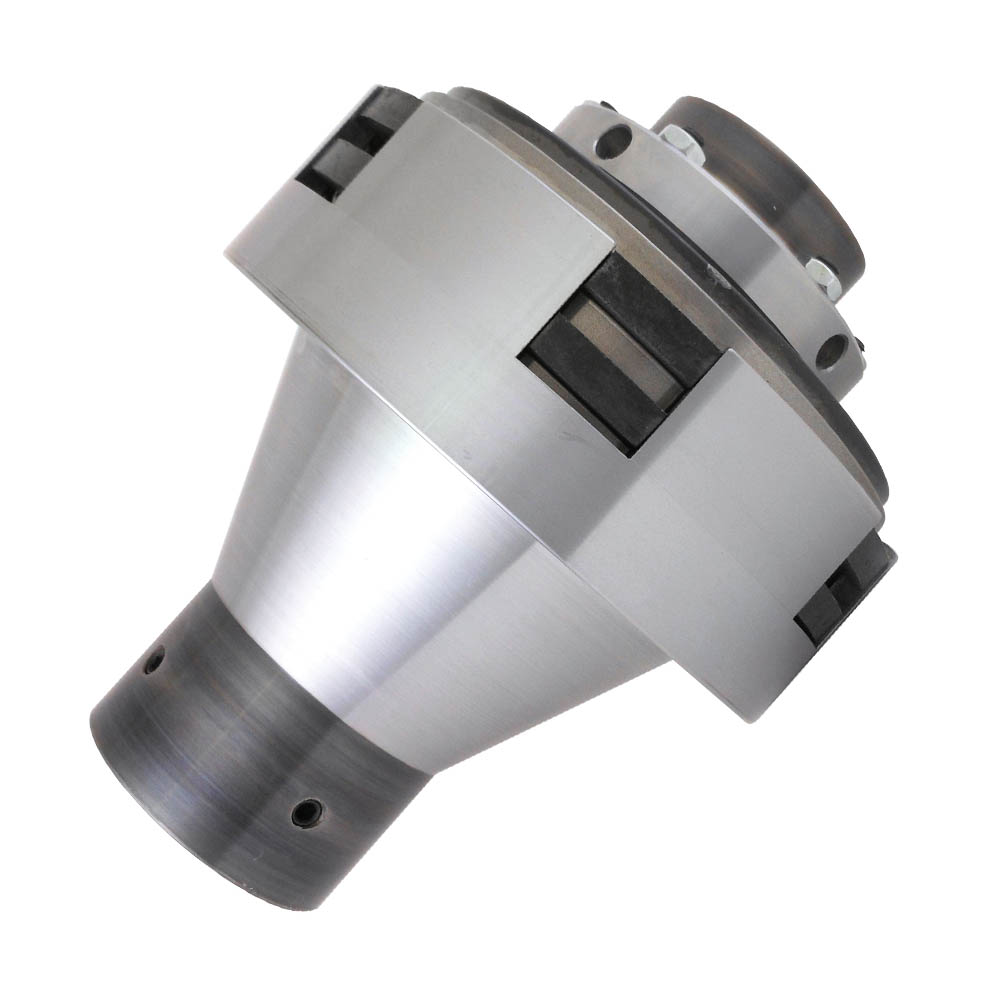

Self-Aligning Torque Coupling

With a torque setting of 8,000 pound inches, this coupling provides overload protection and the design assists with shaft alignment during installation.

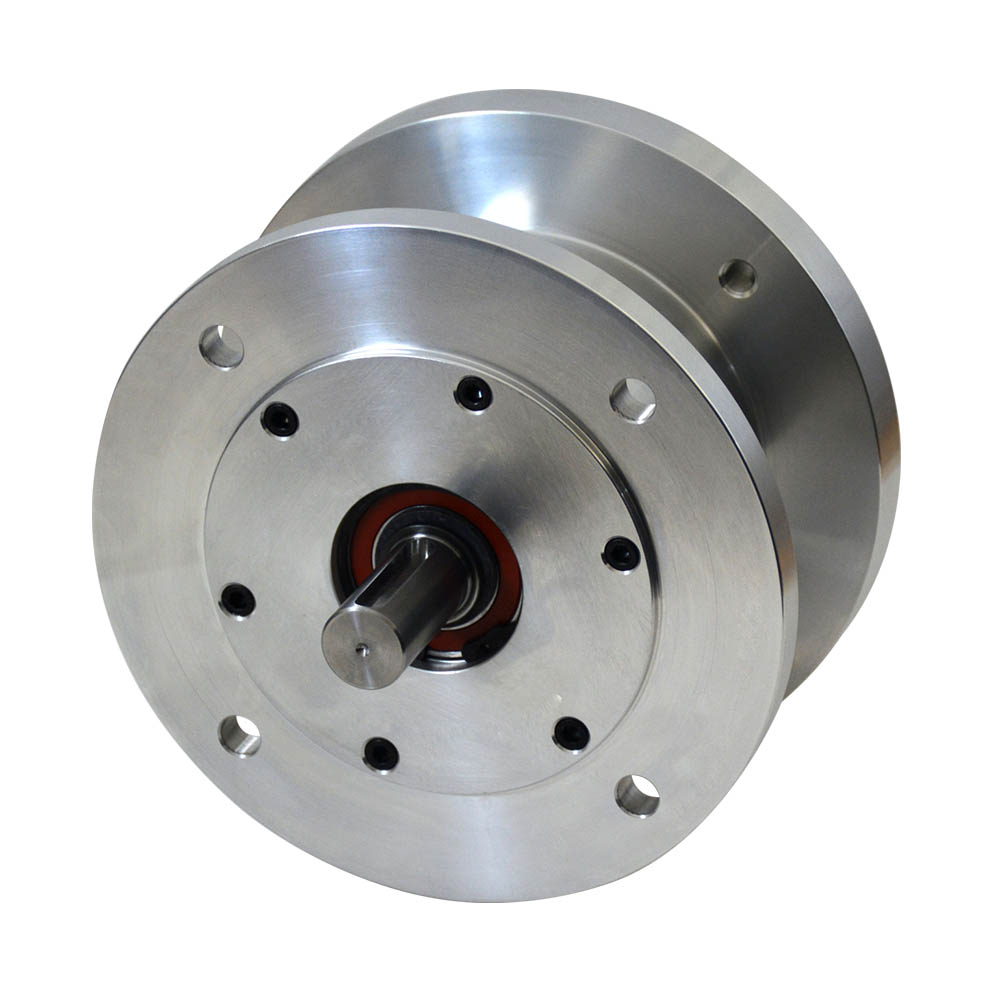

IEC Frame Torque Limiter

Factory set to slip at 105 pound inches (+/- 10%), this torque limiter has flange connections to interface with IEC 90-B5 frame components.

Square Input and Output

Made of stainless steel and entirely enclosed, this mechanical torque limiter has a 24mm square output shaft and a 24mm input socket.

Torque Limiter Inside The Pulley

This small, space saving design incorporates a 28LX037 timing belt pulley and provides overload protection between the pulley and a 9mm shaft.

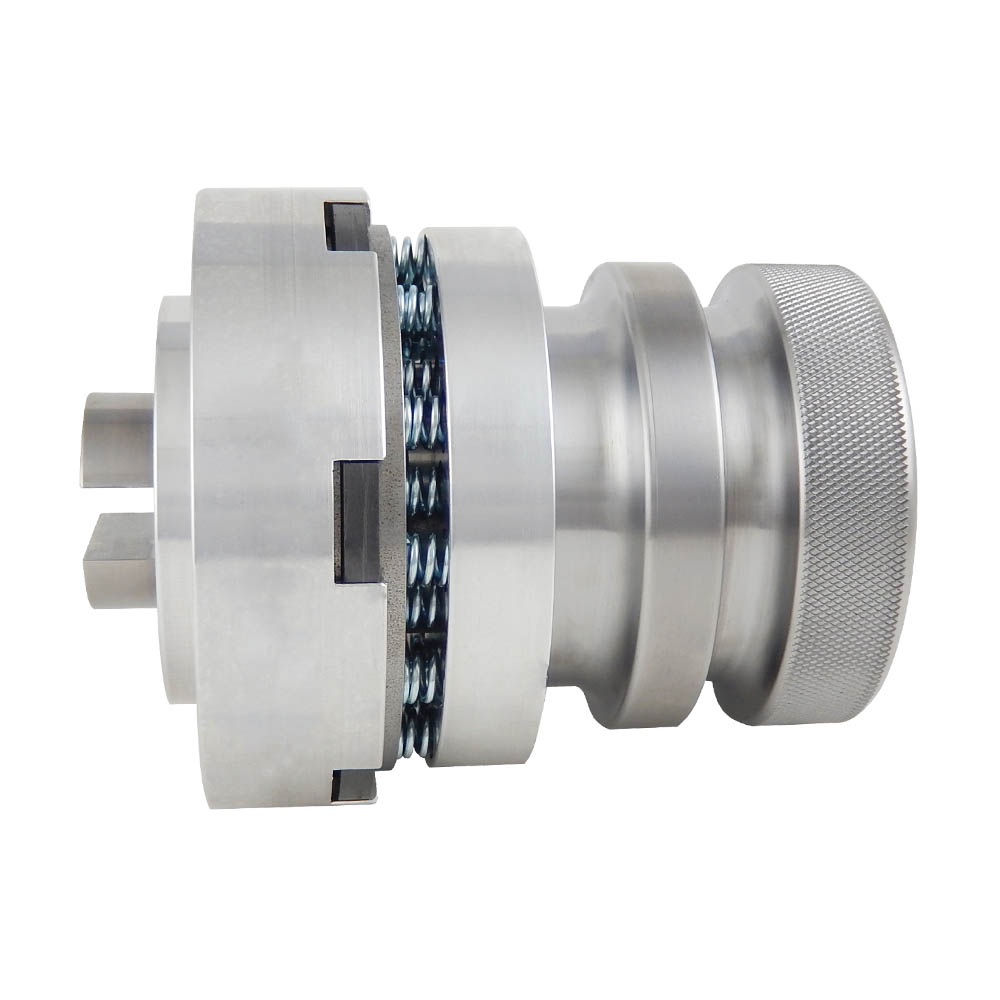

Hand Adjustable Torque Limiter

Half inch slot output holds a roll of film on a laminator and a knurled knob allows the operator to make manual adjustment to the tension on the film.

Reamer Holder – Torque Limiter Combo

Integral torque limiter prevents the tool from breaking if the reamer is jammed. #1 Morse taper input and #2 Morse taper output.

Custom Clutch-Brakes

From slight modifications of our catalog models to completely clean sheet creations, Mach III specializes in creating custom clutch-brake designs. Through collaboration with our engineers, clients receive precise solutions for their new machine design or retrofit application. Below are examples of some of the custom friction clutch-brakes Mach III has manufactured.

Customized Overload Protection Solutions

Friction torque limiters provide simple, cost effective, bi-directional protection of higher cost components. The units slip whenever torque in excess of a pre-set amount is experienced and continue to slip until the overload ceases. No operator intervention is required to reset the unit.

Custom Clutches

From slight modifications of our catalog models to completely clean sheet creations, Mach III specializes in creating custom clutch designs. Through collaboration with our engineers, clients receive precise solutions for their new machine design or retrofit application. Below are examples of some of the custom friction clutches Mach III has manufactured.
