Custom Brakes for Specialized Applications

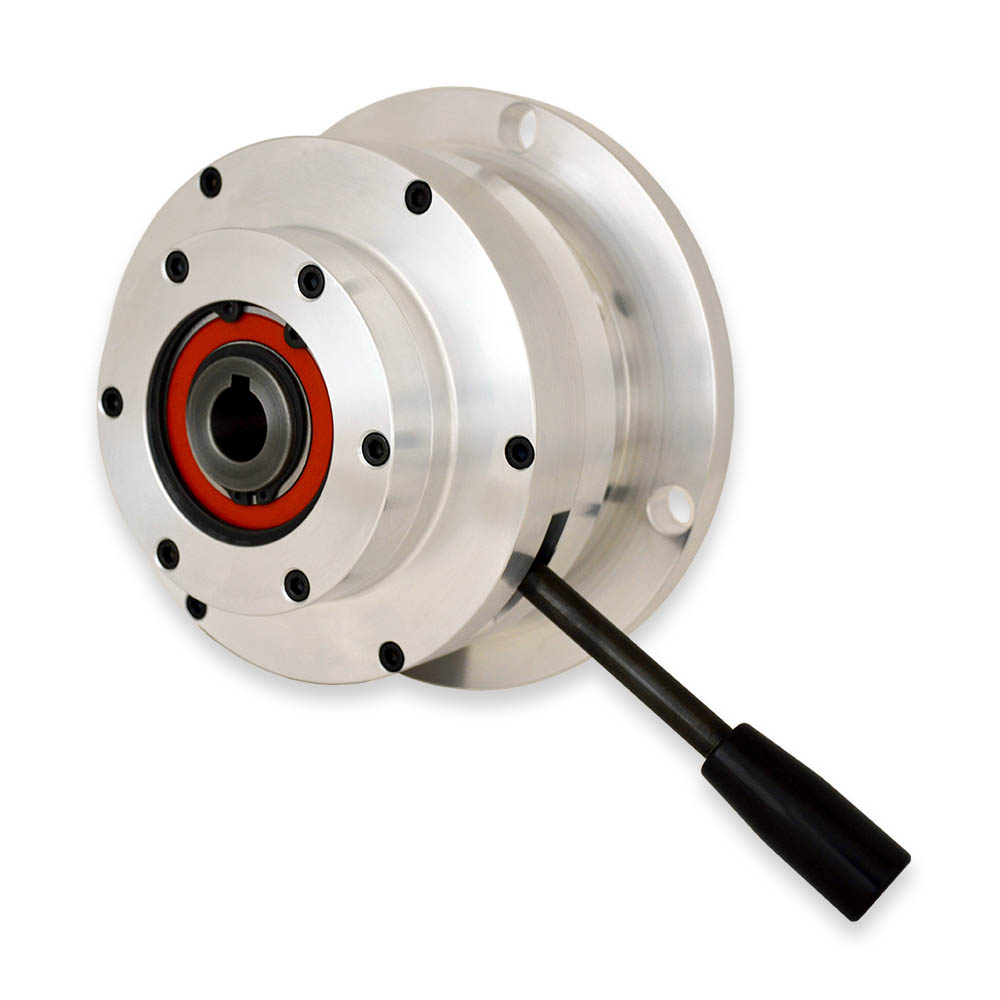

Spring applied brake holds a 19 mm shaft stationary until it is disengaged with compressed air or, in case of a power outage, manually disengaged with the release lever.

With four brake discs, this spring applied brake holds a 1.75 inch shaft with 4,400 pound inches of torque and fits within a 9 inch diameter.

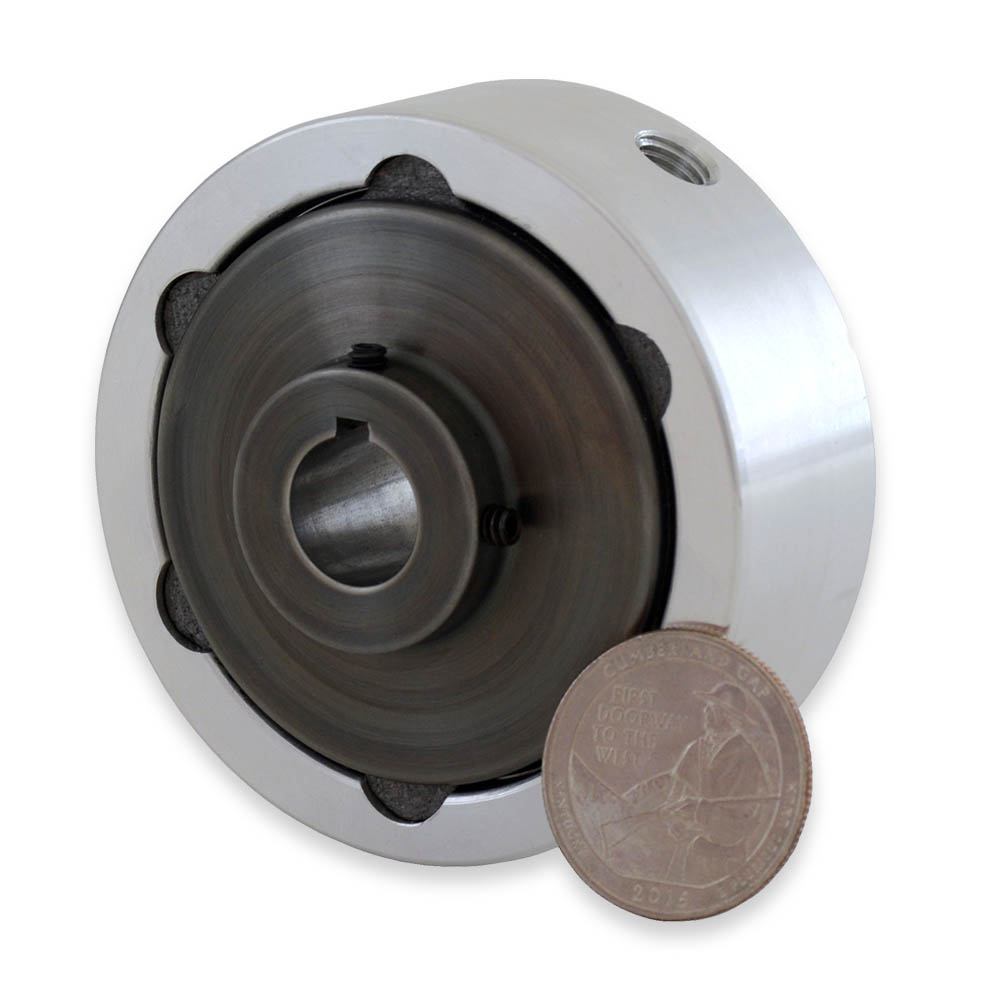

Air applied brake provides ultra-light tension on a half-inch shaft and is less than an inch and a half long.

Fits between a Dyna-Torque 7 air motor and a gear reducer with an IEC 100-B5 flange. Holding torque capacity is 274 pound inches.

Air applied brake has an enclosed design and provides tension on film in a food packaging application.

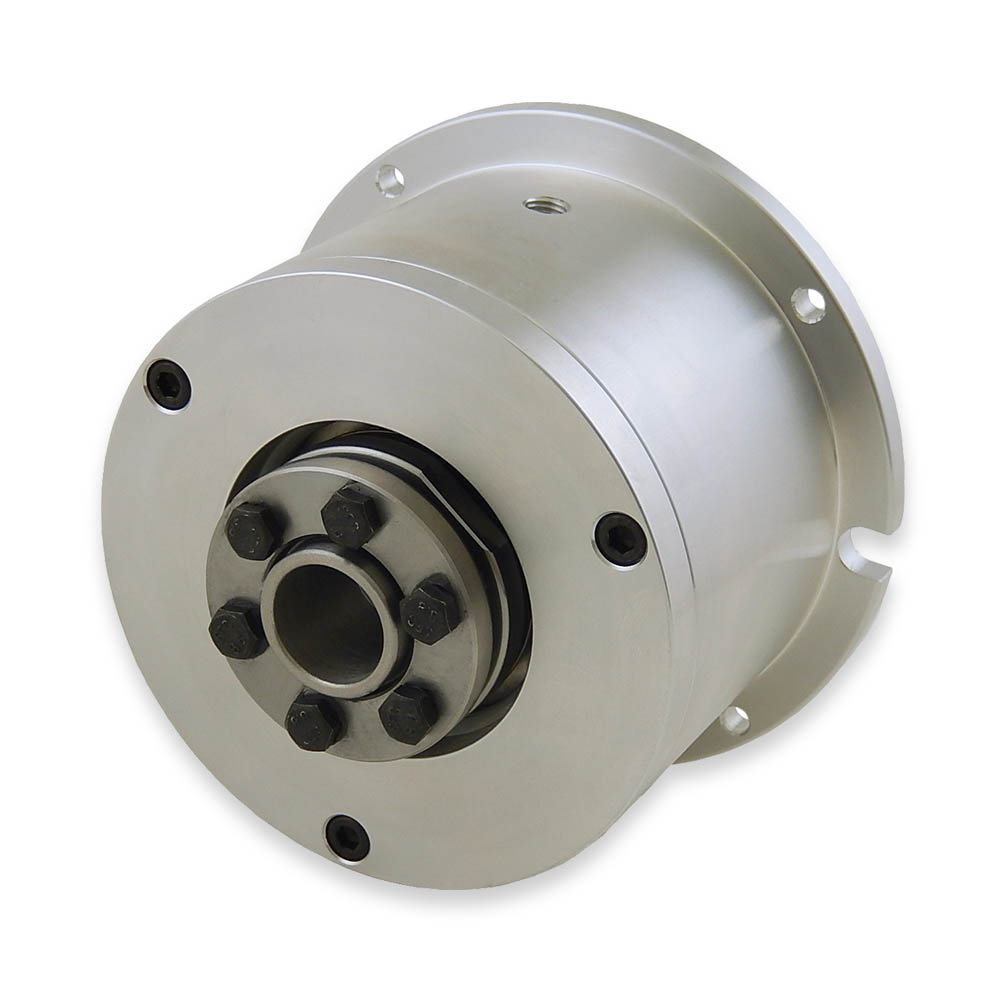

Compact brake used on an assembly fixture attaches to a 5/8 inch shaft with a shrink disc instead of a key and set-screw.

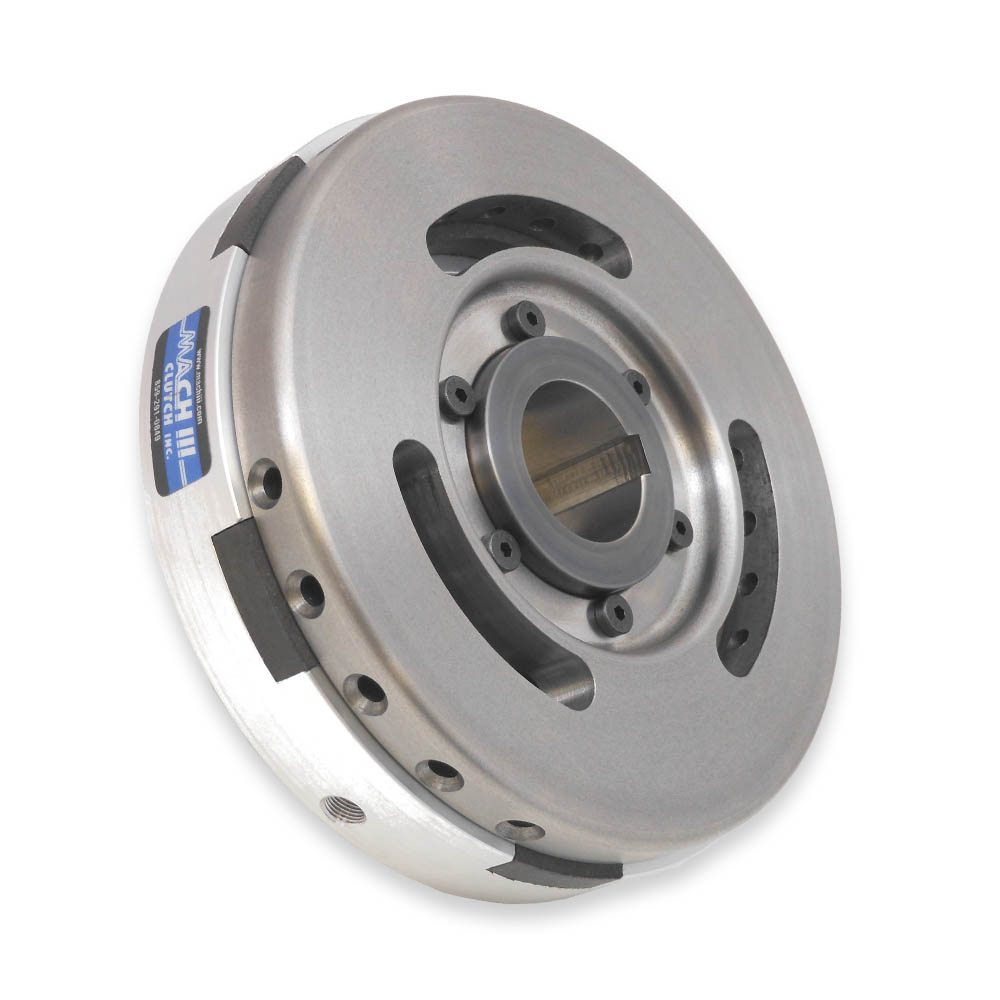

At just 1.75 inches thick, this air applied brake provides tension control in a narrow space on a coil winding machine.

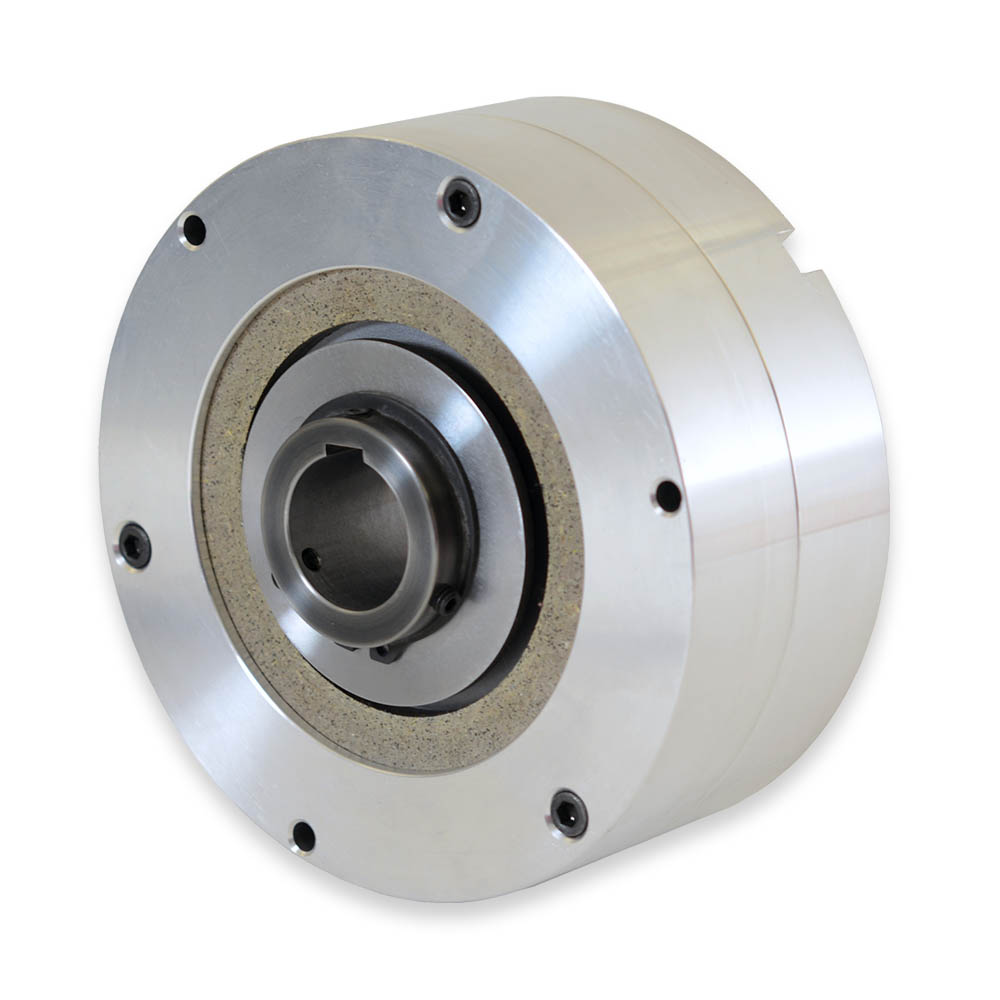

Spring applied brake with all metric interfacing dimensions. Slots on the back fit into tabs mounted on the machine to react brake torque while conserving space.

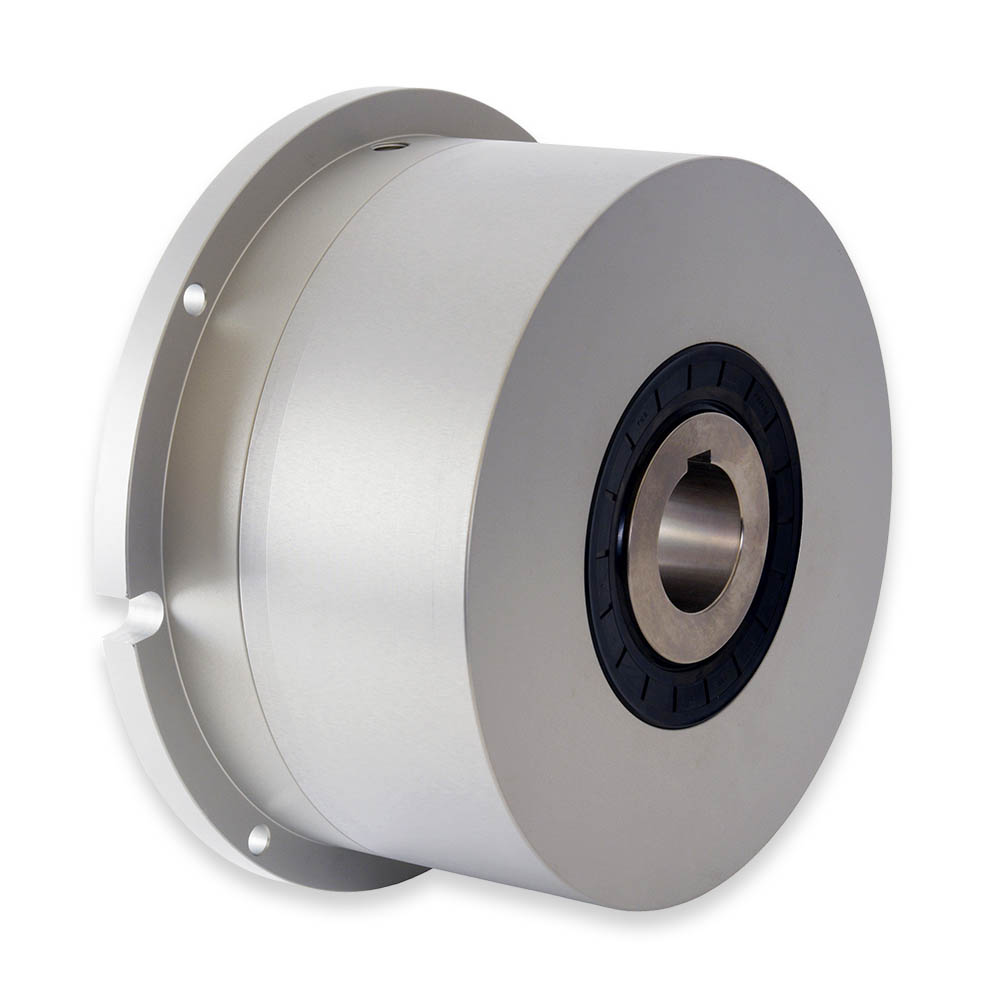

Used in a pork processing plant, this brake used on a carcass transport conveyor is constructed for durability in a washdown environment.

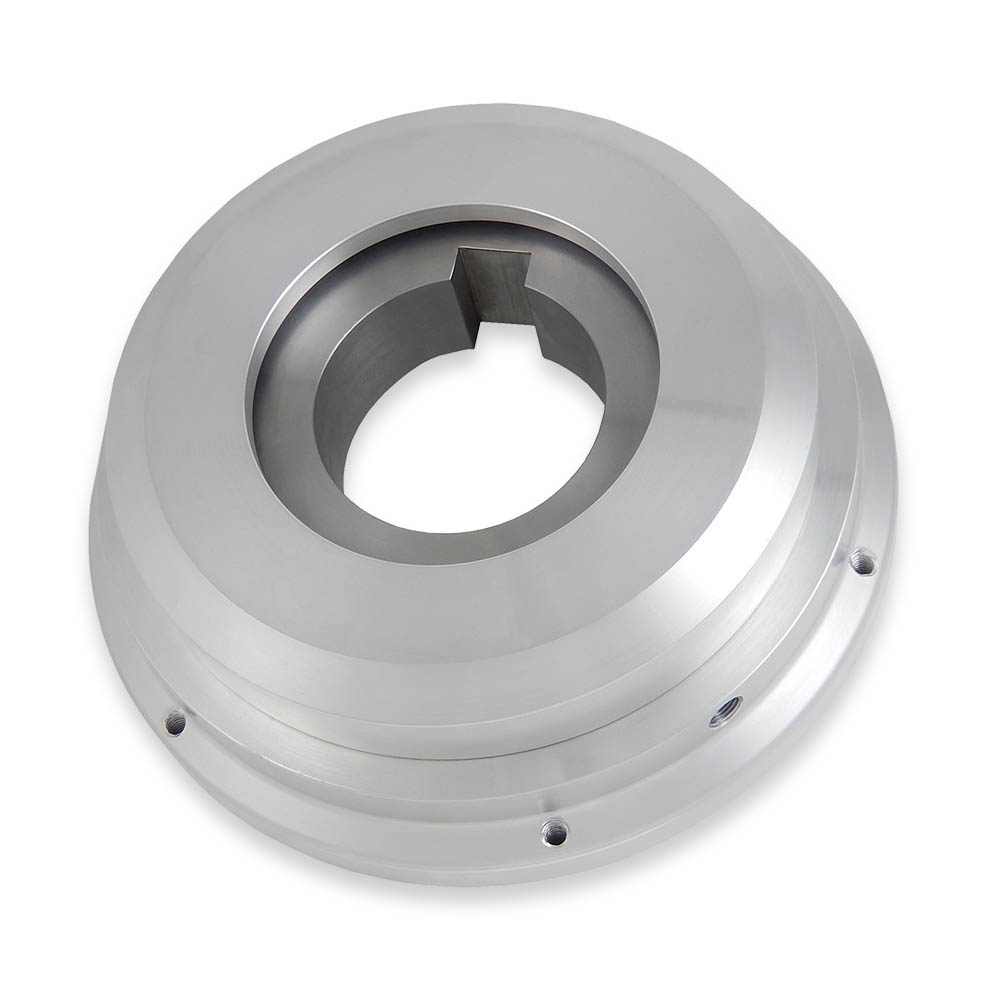

This air engaged unit applies 374 inch pounds of brake torque to a 2.875 inch shaft while taking up only 2.55 inches of axial space on the machine.
