Individualized Torque Limiters

Modified To Exact Specifications

Torque limiters are essential in heavy-duty, high-performance machinery to keep down-line components safe from overloads. Sometimes a standard torque limiter doesn’t meet all the requirements of a specialized application and implementing a standard component creates the potential for equipment failure. Mechanical failures can not only damage machines and products, but they can also lead to reduced operation performance, throughput and worker safety.

It is far more easy, safe and cost-effective to commission a custom torque limiter in high-performance applications — meeting your exact needs and keeping equipment, products and workers safe. We are well versed in providing a large array of custom torque limiter solutions, from slight modifications of our catalog models to designing completely unique creations.

Custom Features Available

Our engineering expertise gives us an advantage in working with you to make sure you get the exact torque limiter you need. Our custom modifications include:

  • Water-resistance
  • Installation space constraints
  • Food-safety compliance
  • Alternate flange connections
  • On-the-fly adjustability
  • Discontinued product replacement

See Our Custom Design History

We’ve designed and manufactured more than 400 custom torque limiters. Browse through our list below to see some samples of real custom solutions, or contact us to get started.

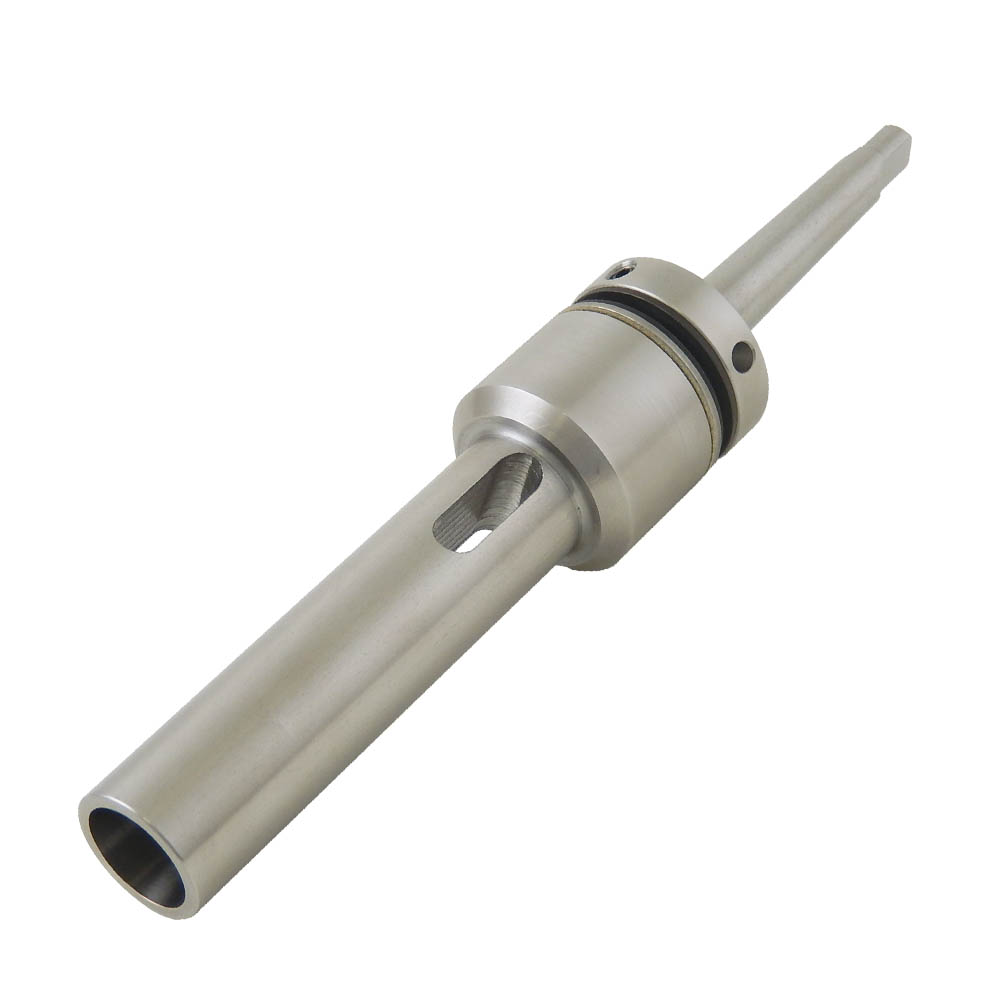

Reamer Holder – Torque Limiter Combo

Integral torque limiter prevents the tool from breaking if the reamer is jammed. #1 Morse taper input and #2 Morse taper output.

View Detail Sheet

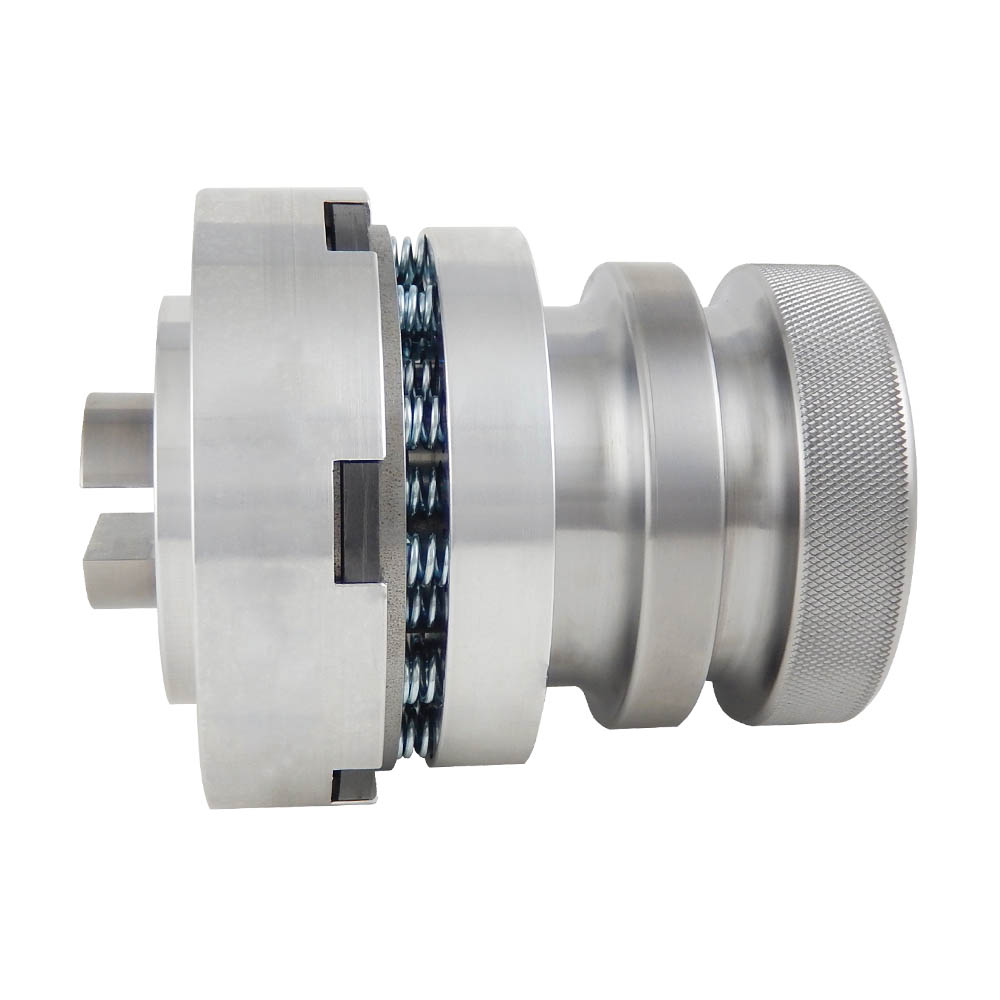

Hand Adjustable Torque Limiter

Half inch slot output holds a roll of film on a laminator and a knurled knob allows the operator to make manual adjustment to the tension on the film.

View Detail Sheet

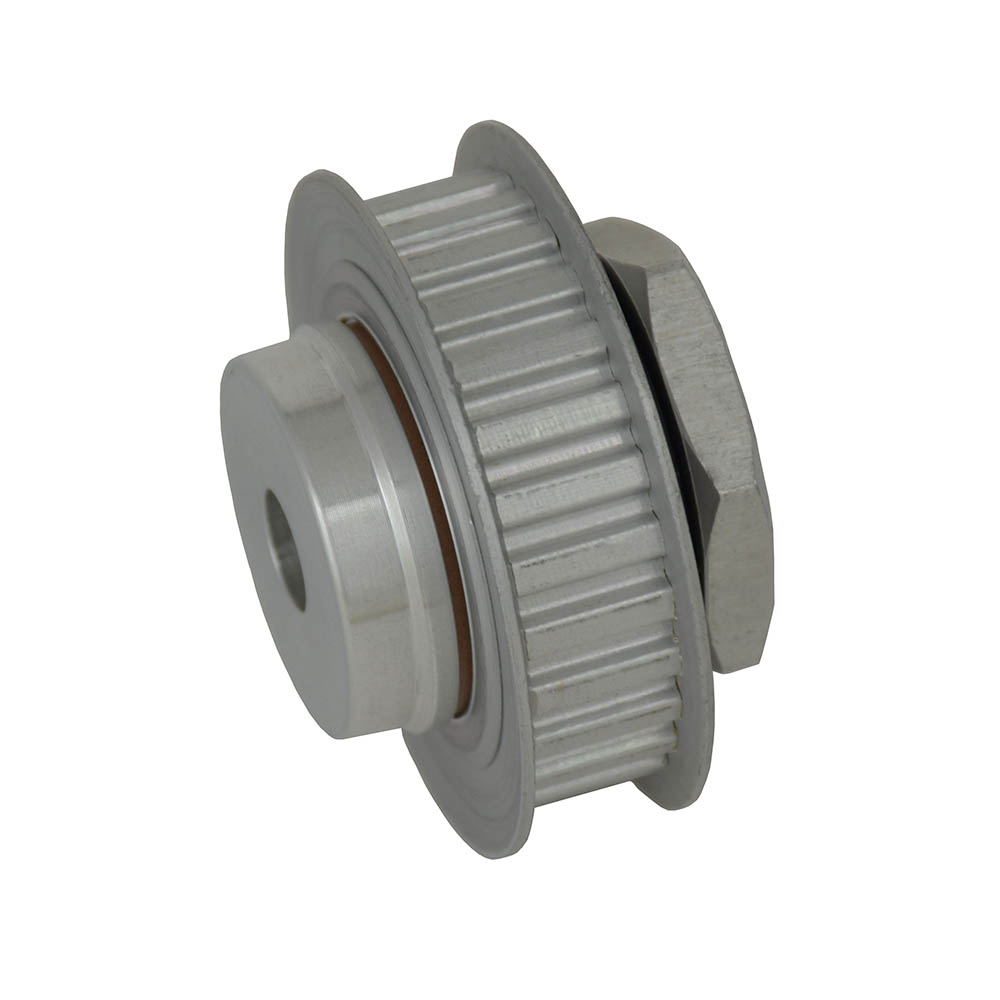

Torque Limiter Inside The Pulley

This small, space saving design incorporates a 28LX037 timing belt pulley and provides overload protection between the pulley and a 9mm shaft.

View Detail Sheet

Square Input and Output

Made of stainless steel and entirely enclosed, this mechanical torque limiter has a 24mm square output shaft and a 24mm input socket.

View Detail Sheet

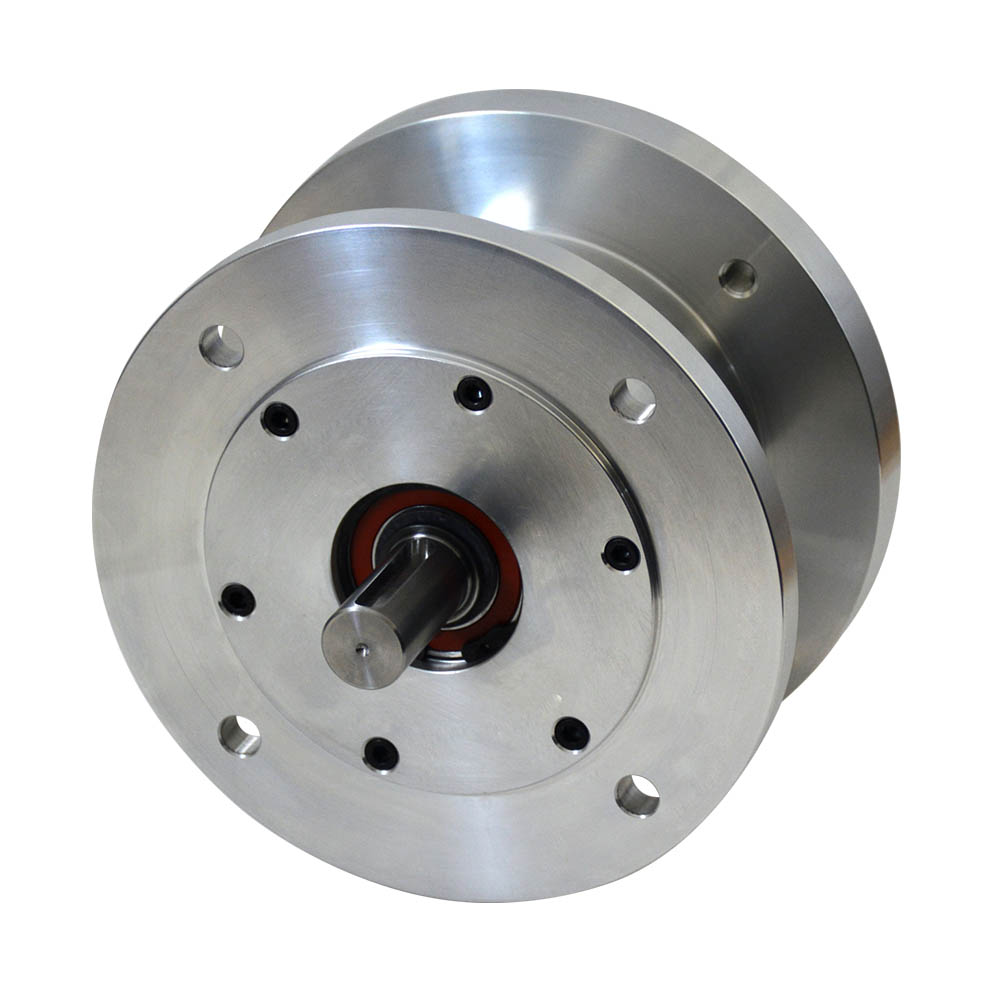

IEC Frame Torque Limiter

Factory set to slip at 105 pound inches (+/- 10%), this torque limiter has flange connections to interface with IEC 90-B5 frame components.

View Detail Sheet

Self-Aligning Torque Coupling

With a torque setting of 8,000 pound inches, this coupling provides overload protection and the design assists with shaft alignment during installation.

View Detail Sheet

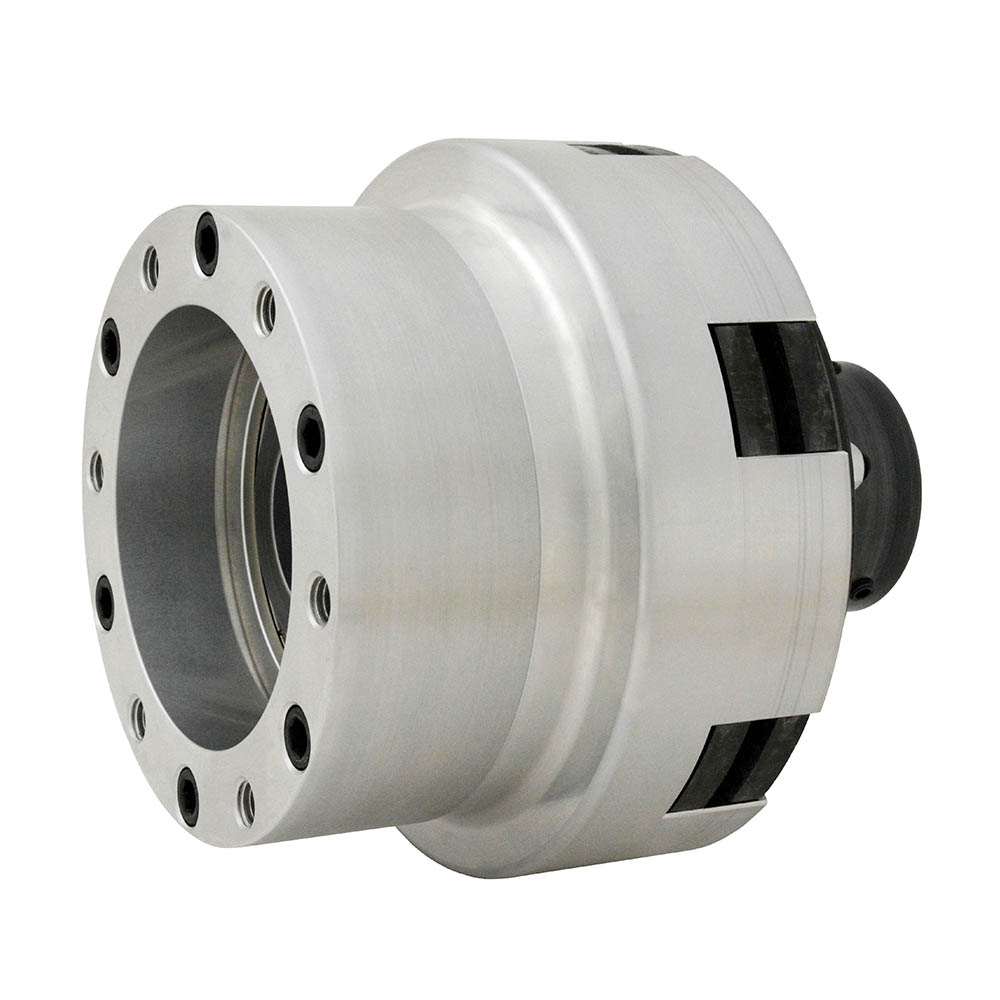

Torque Limiter With Female Pilot

Capable of a slip torque setting of 6,140 pound inches, this torque limiter bolts to a flange that is used for testing valves.

View Detail Sheet

Overload Protection For Sprag Clutch

Designed to attach directly to a size 600 Renold sprag clutch, this unit provides a torque capacity of 6,500 pound inches and is less than 4.5 inches long.

View Detail Sheet

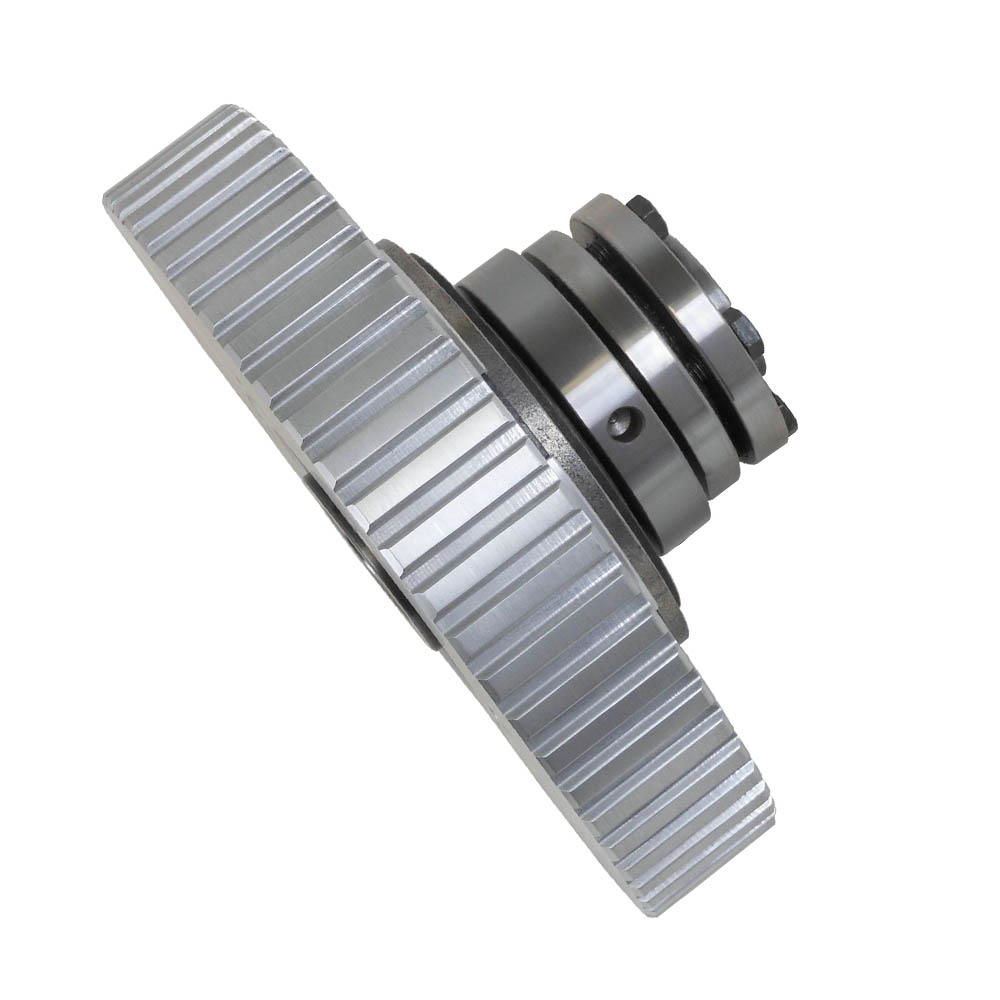

Browning Torque Limiter Replacement

This torque limiter locks onto the shaft with a shrink disc and includes an integral 60L100 pulley. It replaced a Browning TGC 60 on a retrofit project.

View Detail Sheet

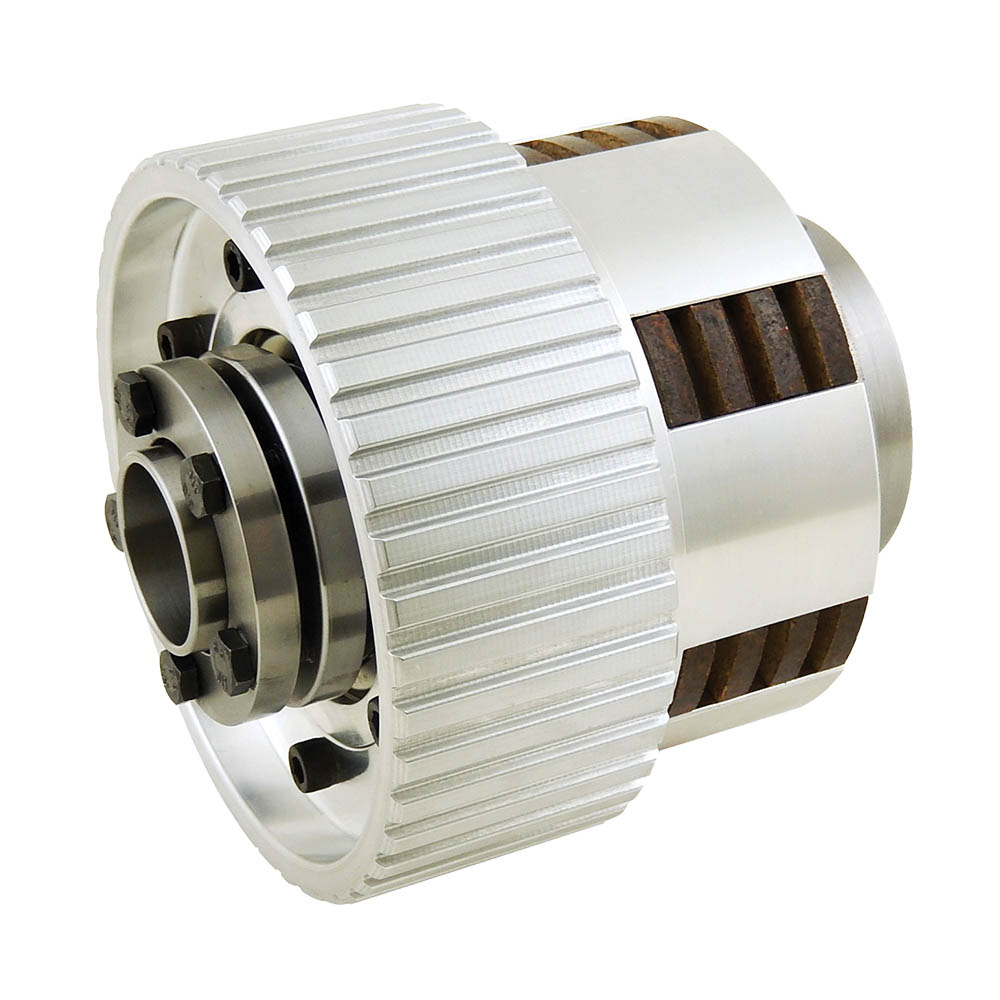

Diameter Restricted Torque Limiter

Required to have a torque capacity of nearly 4,000 pound inches within a diameter of less than 5.5 inches, this unit delivers with a multi-disc design.

View Detail Sheet
