Custom Brake Solutions

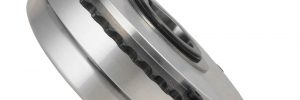

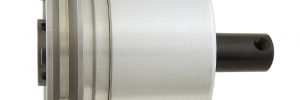

From slight modifications of our catalog models to completely clean sheet creations, Mach III specializes in creating custom brake designs. Through collaboration with our engineers, clients receive precise solutions for their new machine design or retrofit application. Below are examples of some of the custom friction brakes Mach III has manufactured.

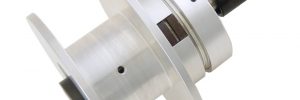

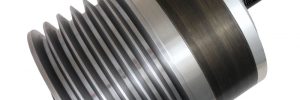

Power Drill Torque Couplings

PREVENT DAMAGE AND DISCOMFORT Mach III’s torque limiting coupling has been used for decades to turn heavy-duty power drills such as the Milwaukee Super Hole Shooter Drill and Unitec ETE 32 into efficient tools for opening and closing gate valves, butterfly valves, ball valves, plug valves, mud valves, sluice gates, slide gates and other rotary…

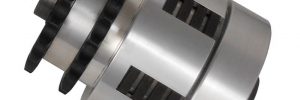

Spring Engaged Clutch – End of Shaft

Function: Connect, Disconnect
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft

• Bore Sizes to 3.500 inch, Torque Requirements to 24,327 lb.in.
• Clutch is blind bored and keyed for connection in an end of shaft location.
• A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

NEMA Frame Clutch-Brakes

Function: Starting and Stopping / Holding The Output Shaft
Drive Arrangement: Motor to Gear Reducer (or Output Shaft Mounted Component)

• One air signal is required.
• Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

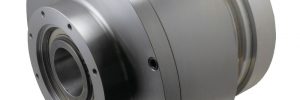

Air Engaged Clutches – Through Shaft

Function: Connect, Disconnect (Cycling Applications)
Drive Arrangement: Pilot Mounted Component to Shaft or Shaft to Pilot Mounted Component

• Bore Sizes to 3.500 inch, Torque Requirements to 21,204 lb.in.
• Clutch is through bored and keyed for connection to a shaft in any axial location.
• A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

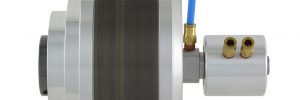

Air Engaged Clutches – End of Shaft

Function: Connect, Disconnect
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft

• Bore Sizes to 3.500 inch, Torque Requirements to 41,008 lb.in.
• Clutch is blind bored and keyed for connection in an end of shaft location.
• A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

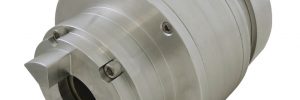

Air Engaged Flexible Clutch Couplings

Function: Connect, Disconnect
Drive Arrangement: Shaft to Shaft, Slight Angular Misalignment and/or Parallel Offset

• Bore Sizes to 2.000 inch, Torque Requirements to 5,397 lb.in.
• Clutch mechanism is through bored and keyed to connect to a fully supported shaft.
• Coupling is bored and keyed to connect to a fully supported shaft.

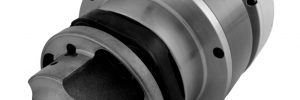

Air Engaged Clutch Mechanisms With Couplings

Function: Connect, Disconnect
Drive Arrangement: Shaft to Shaft, No Angular Misalignment and/or Parallel Offset

• Bore Sizes to 3.500 inch, Torque Requirements to 21,204 lb.in.
• Clutch mechanism is through bored and keyed to connect to a fully supported shaft.
• Coupling is bored and keyed to connect to a fully supported shaft.

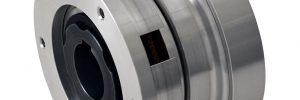

Air Engaged Clutch Mechanisms With Adapters

Function: Connect, Disconnect
Drive Arrangement: Shaft to Adapter Mounted Component

• Bore Sizes to 3.500 inch, Torque Requirements to 21,204 lb.in.
• Clutch mechanism is through bored and keyed to connect to a fully supported shaft.
• Adapter connects to a bearing mounted pulley, gear or other component.

Spring Engaged Clutch – Through Shaft

Function: Connect, Disconnect
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft

• Bore Sizes to 3.500 inch, Torque Requirements to 23,733 lb.in.
• Clutch is through bored and keyed to connection to a shaft in any axial location.
• A sprocket, pulley or v-belt sheave can be mounted on the clutch pilot.

Mechanical Friction Torque Limiter – NEMA Frame

Function: Overload Protection
Drive Arrangement: Motor to Gear Reducer (Gear Box)

• Torque limiter input is bored and keyed to connect to a NEMA frame motor.
• Torque limiter output shaft with key connects to a NEMA frame gear reducer.

Mechanical Friction Torque Limiter – Through Shaft

Function: Overload Protection
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft

• Torque limiter is through bored and keyed for connection to a shaft in any axial location.
• A sprocket, pulley or v-belt sheave can be mounted on the torque limiter pilot.

Flexible Mechanical Friction Torque Limiter Coupling

Function: Overload Protection
Drive Arrangement: Shaft to Shaft, Slight Angular Misalignment and/or Parallel Offset

• Torque limiter mechanism is through bored and keyed to connect to a fully supported shaft.
• Coupling is bored and keyed to connect to a fully supported shaft.

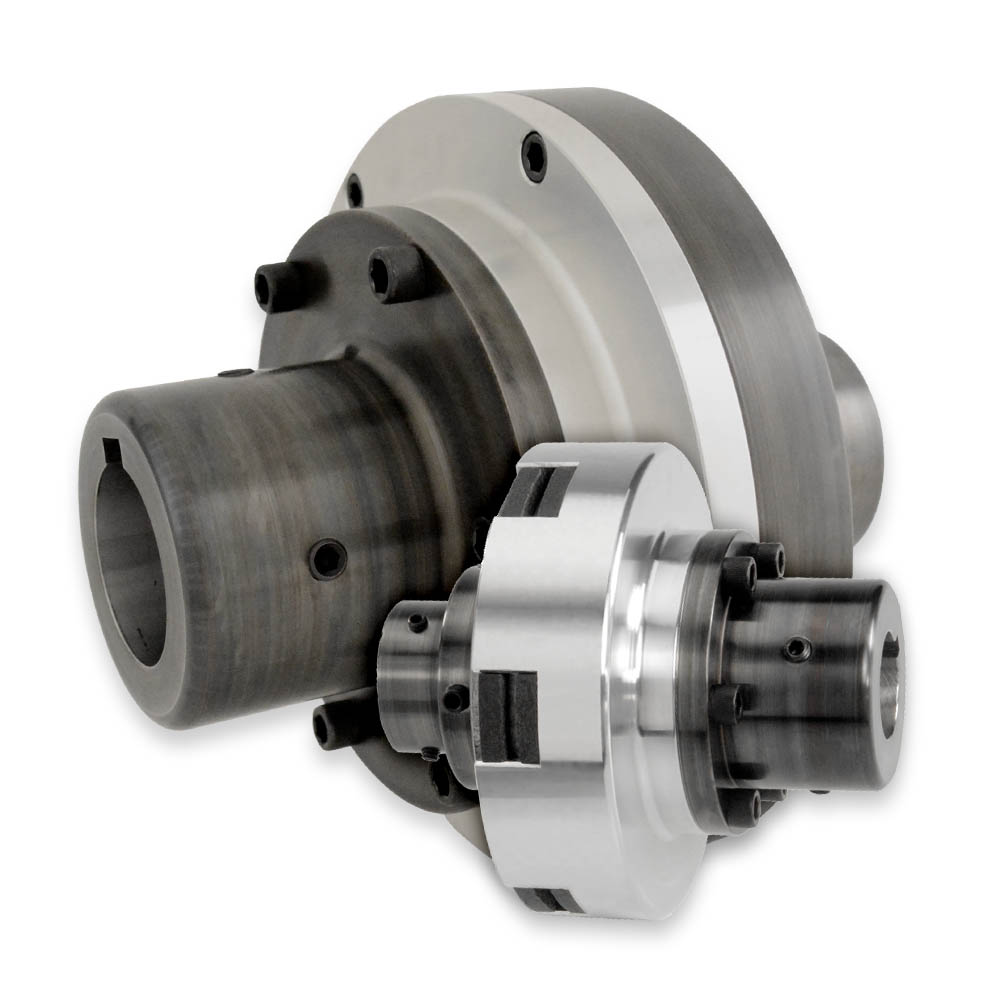

Mechanical Friction Torque Limiter Mechanisms with Couplings

Function: Overload Protection
Drive Arrangement: Shaft to Shaft, No Angular Misalignment and/or Parallel Offset

• Torque limiter mechanism is through bored and keyed to connect to a fully supported shaft.
• Coupling is bored and keyed to connect to a fully supported shaft.

Mechanical Friction Torque Limiter Mechanisms with Adapters

Function: Overload Protection
Drive Arrangement: Shaft to Adapter Mounted Component

• Torque limiter mechanism is through bored and keyed to connect to a fully supported shaft.
• Adapter connects to a bearing mounted pulley, gear or other component.

Pilot Input Tension Control Clutches

Drive Arrangement:

• Pilot mounted sprocket, pulley or coupling is the input.
• Clutch drives the shaft on which it is mounted when engaged.

Shaft Input Tension Control Clutches

Drive Arrangement:

• Shaft on which the clutch is mounted is the input.
• Clutch drives a pilot mounted sprocket, pulley or coupling when engaged.

Foot Mount Tension Control Clutches

Drive Arrangement:

• Input shaft is connected to the drive.
• Output shaft is driven when the clutch is engaged.

Tension Control Brakes

Drive Arrangement:

• Brake housing connects to the machine frame or a bracket.
• Torque is applied to the unwind shaft when the brake is engaged.

Air-Air Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

• Two separate air signals are required.
• Both clutch and brake torque transmitted are proportional to the amount of air pressure applied.

Double Single Sprocket Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

• One air signal is required.
• Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

Pilot Input Clutch-Brakes To Stop and Start the Shaft

Function: Starting and Stopping / Holding The Shaft
Drive Arrangement: Pilot Mounted Component to Shaft

• One air signal is required.
• Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

Shaft Input Clutch-Brakes To Stop and Start the Pilot

Function: Starting and Stopping / Holding The Pilot Mounted Component
Drive Arrangement: Shaft to Pilot Mounted Component

• One air signal is required.
• Clutch torque transmitted is proportional to the amount of air pressure applied, brake torque is a fixed value.

Spring Engaged Brakes

Function: Holding, Failsafe (Non-Cycling Applications)
Drive Arrangement: Machine Frame or Bracket to Shaft

• Spring pressure compresses drive and friction discs to produce a fixed amount of torque.
• Air pressure is applied to disengage the brake.

Air Engaged Clutches – NEMA Frame

Function: Connect, Disconnect
Drive Arrangement: Motor to Gear Reducer (Gear Box)

• Clutch input is bored and keyed to connect to a NEMA frame motor.
• Clutch output shaft with key connects to a NEMA frame gear reducer.

Air Engaged Brakes

Function: Stopping, Holding (Cycling Applications)
Drive Arrangement: Machine Frame or Bracket to Shaft

• Applying air pressure compresses drive and friction discs to produce torque.
• Torque is proportional to the air pressure applied.
• Separator springs assure full brake release when air pressure is absent.

Spring Engaged Brakes – NEMA Frame

Function: Holding, Failsafe (Non-Cycling Applications)
Drive Arrangement: Motor to Gear Reducer (Gear Box)

• Spring pressure compresses drive and friction discs to produce a fixed amount of torque.
• Air pressure is applied to disengage the brake.
