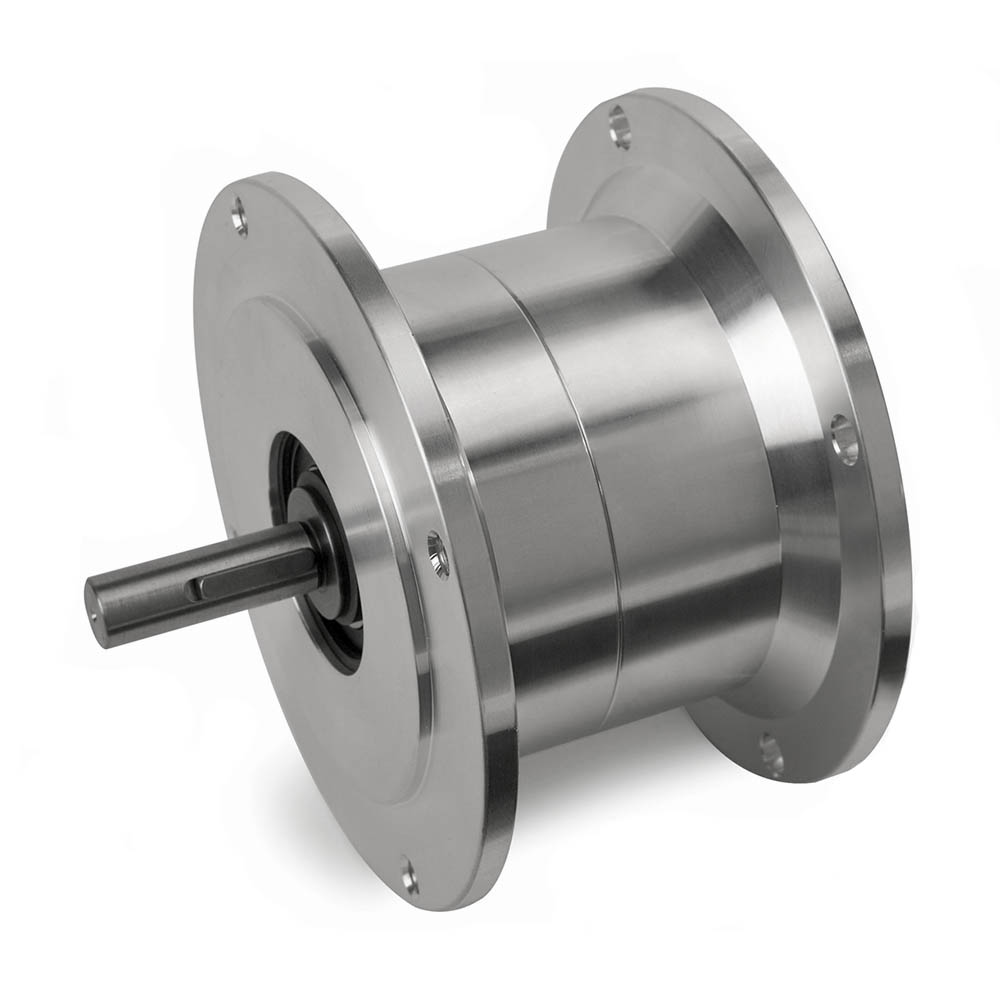

Air Engaged Clutches – NEMA Frame
C-Face Mounted Friction Clutches
Function: Connect, Disconnect
Drive Arrangement: Motor to Gear Reducer (Gear Box)
Operation
- Air pressure compresses drive and friction discs to produce torque.
- Torque is linear in response to air pressure applied.
- Release springs provide positive disengagement when air is exhausted.
Mounting
- Mounts between a c-face motor and gear reducer.
- Not suitable for belt drive (pulley output) applications.
- Designed for horizontal mounting. If vertical mounting is required, consult engineering for options.
Applications
- Air engaged friction clutches are suitable for connect/disconnect, cycling applications.
- Maximum RPM varies by model and is listed on the PDF detail sheet (see table below). Consult engineering if the intended application exceeds the listed maximum RPM.
Design Features
- Air engaged clutches are made-to-order with any bore size up to the maximum shown for easy installation.
- Models listed have enclosed, aluminum housings.
- Clear anodized and stainless housing versions are also available. Contact engineering for details.
Customization Options
All Mach III products can be customized to meet the needs of your application.
| Product Code | Torque @ 80 PSI | NEMA Frame Size | Output Shaft & Input Bore | Detail Sheet | Request 3D CAD Model |
|---|---|---|---|---|---|
| C3C2R-56H | 573 lb-in | 56C | 0.625 in | ||
| C3C2R-14H | 573 lb-in | 143TC, 145TC | 0.875 in | ||
| C5C2R-18H | 2,587 lb-in | 182TC, 184TC | 1.125 in | ||
| C5C2R-21H | 2,587 lb-in | 213TC, 215TC | 1.375 in |
