Air Engaged Clutches – End of Shaft

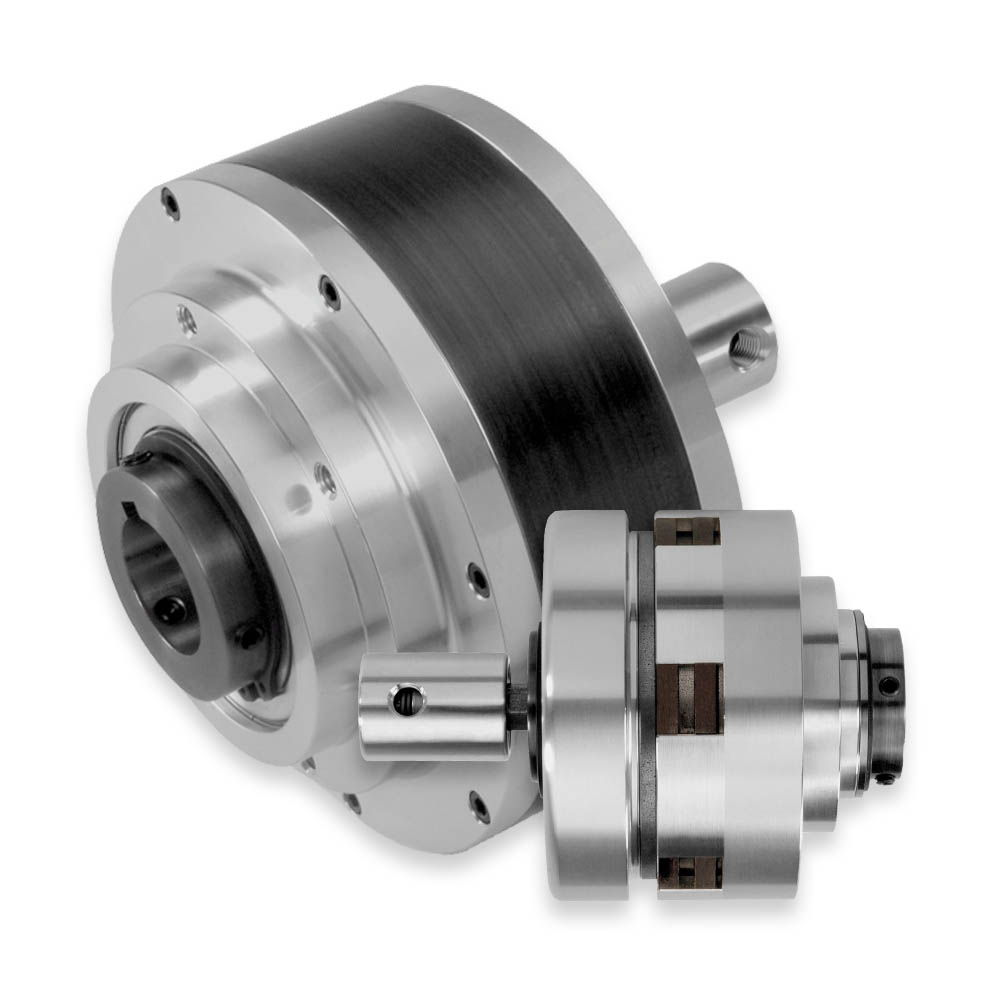

End of Shaft Bored, Pilot Mount Friction Clutches
Function: Connect, Disconnect
Drive Arrangement: Shaft to Pilot Mounted Component or Pilot Mounted Component to Shaft
Operation
- Industrial friction clutch engages with air pressure, spring released when air is exhausted.
- Torque is linear in response to air pressure applied.
Mounting
- End of Shaft.
- Friction clutch slides on shaft and is fixed with set screws and a customer supplied key.
- No anti-rotation arm required.
- Friction clutches are designed for horizontal mounting. If vertical mounting is required, consult engineering for options.
Applications
- Friction clutches are suitable for Connect/Disconnect and Cycling applications.
- Maximum RPM varies by model. Please consult the detail sheets (below). Consult engineering if the intended application exceeds the listed maximum RPM.
Design Features
- Industrial friction clutches are bored to suit up to the maximum shown (US & Metric) for easy installation.
- Low coefficient friction lining versions are available for applications requiring slip or a narrower torque range. Contact engineering for details.
- Machined pilot for easy mounting of pulley or sprocket.
- Includes rotary air seal.
Customization Options
All Mach III products can be customized to meet the needs of your application.
| Product Code | Torque @ 80 PSI | Maximum Bore with Standard Keyway (Inches / Millimeters) | Detail Sheet | Request 3D CAD Model |
|---|---|---|---|---|
| C2D2R-STH | 202 lb-in | 0.500 in (12 mm) | ||
| C3D2R-STH | 555 lb-in | 1.000 in (24 mm) | ||
| C4D2R-STH | 1,317 lb-in | 1.250 in (31 mm) | ||
| C5D2R-STH | 2,587 lb-in | 1.438 in (38 mm) | ||
| C5D3K-STH | 4,690 lb-in | 1.563 in (40 mm) | ||
| C6D2G-STH | 5,397 lb-in | 2.000 in (52 mm) | ||
| C6D3K-STH | 7,405 lb-in | 2.000 in (52 mm) | ||
| C8D3K-STH | 14,855 lb-in | 2.500 in (66 mm) | ||
| CAD3K-STH | 30,795 lb-in | 2.750 in (72 mm) | ||
| CBD3K-STH | 41,008 lb-in | 3.500 in (95 mm) |
